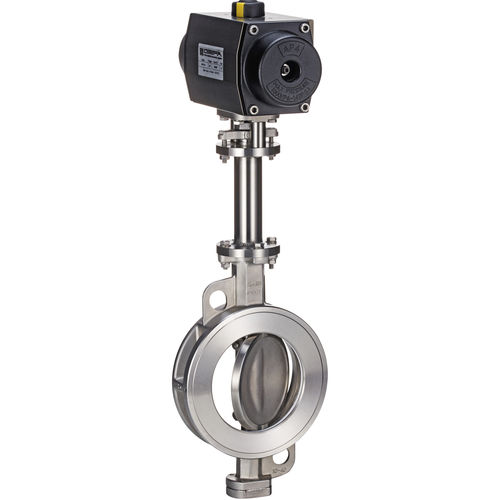

Butterfly valve HGC
manualcontrolfor water

butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
manual
Function
control
Media
for water, for petroleum
Body
mounting flange, stainless steel, double-offset, line
Applications
chemical, for the food industry, for the petroleum industry, for pharmaceutical applications, cryogenic
Associated function
sewage
Other characteristics
ISO, DIN
DN

Min.: 50 mm
(1.969 in)

Max.: 600 mm
(23.622 in)

Pressure

10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)

Temperature

Min.: -200 °C
(-328 °F)

Max.: 200 °C
(392 °F)

Description

Double offset valve for the use down to - 200 °C with cryogenic stem extension as pressure chamber. For installation between flanges EN 1092, PN 10/16/25/40, PS 10 ASME Cl 150/300, PS25 Face-to-face dimension DIN EN 558 line 20 API 609 table 1 Mounting flange DIN EN ISO 5211 Test DIN EN 12266 P10 P11 P12 F20 Marking DIN EN 19, AD 2000
