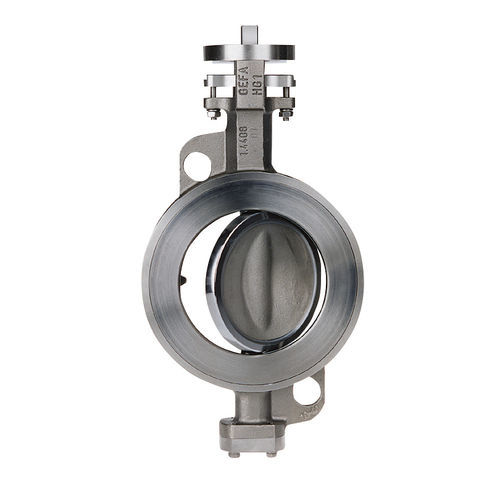

Butterfly valve HG 1electricfor watermounting flange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electric
- Media
- for water
- Body
- mounting flange, wafer, stainless steel, carbon steel, PS, double-offset
- Applications
- for the chemical industry, for the food industry, for the petroleum industry, for the pharmaceutical industry
- Other characteristics
- ISO, ANSI, DIN, high-pressure, high-performance
- DN
Max.: 800 mm
(31.496 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -50 °C
(-58 °F)
Description
Double offset valve as wafer type butterfly valve for high pressure and temperature loads. For installation between flanges EN 1092, PN 10/16/25/40, PS 25 ASME Cl 150/300, PS25
Vacuum up to 1 mbar
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 F20
Marking DIN EN 19, AD 2000
