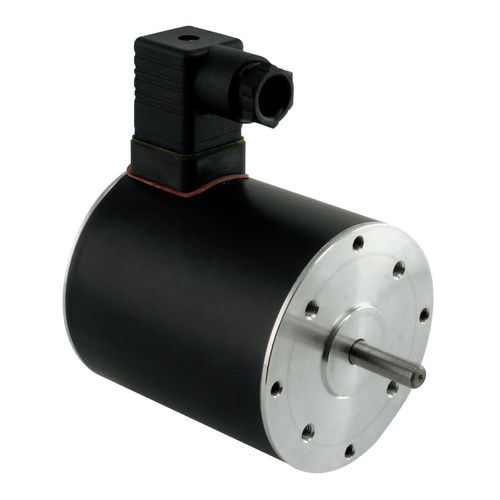

Asynchronous motor K 8 seriessingle-phase110 V380 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, single-phase
- Voltage
- 110 V, 380 V
- Configuration
- stainless steel, capacitor
- Protection class
- IP65, IP44
- Number of poles
- 2-pole
- Other characteristics
- high-performance
- Power
35.3 W, 48.1 W, 77.7 W
(0.05 hp, 0.07 hp, 0.11 hp)- Intensity
240 mA, 390 mA, 600 mA
- Torque
0.0125 Nm, 0.017 Nm, 0.0275 Nm
(0.00922 ft.lb, 0.012539 ft.lb, 0.020283 ft.lb)- Rotational speed
2,700 rpm
(16,964.6003 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: B, optional F
System of protection: IP 44, optional up to IP 65
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, special flanges, custom designed, stainless steel
Catalogs
K8
2 Pages
