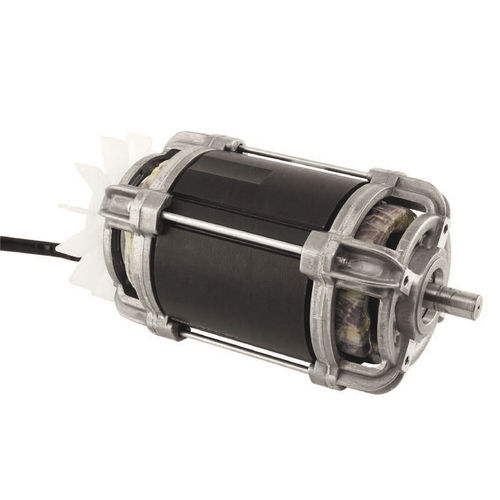

Asynchronous motor Ds 90 seriesthree-phase400 Vopen-frame type
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 400 V
- Configuration
- open-frame type
- Number of poles
- 4-pole
- Other characteristics
- high-performance
- Power
108 W, 176 W, 226 W
(0.15 hp, 0.24 hp, 0.31 hp)- Intensity
474 mA, 620 mA, 670 mA
- Torque
0.077 Nm, 0.125 Nm, 0.16 Nm
(0.056792 ft.lb, 0.092195 ft.lb, 0.11801 ft.lb)- Rotational speed
1,350 rpm
(8,482.3002 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: F
System of protection: IP 00 (open design)
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, custom designed
