- Gefeg-Neckar Antriebssysteme GmbH

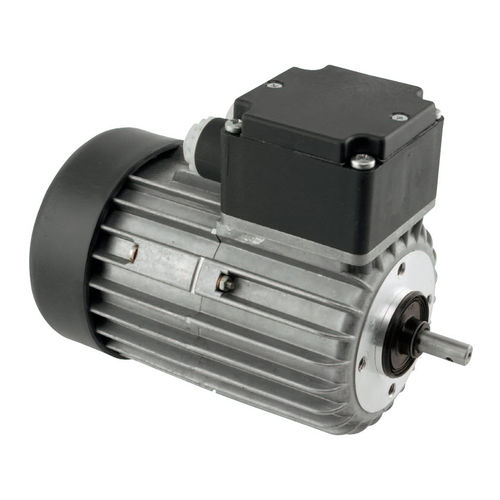

Asynchronous motor Dg 71 seriesthree-phase400 VIP65
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 400 V
- Protection class
- IP65, IP44
- Number of poles
- 2-pole
- Other characteristics
- custom, high-performance
- Power
25 W, 76 W, 90 W
(0.03 hp, 0.1 hp, 0.12 hp)- Intensity
195 mA, 330 mA, 390 mA
- Torque
0.009 Nm, 0.0266 Nm, 0.0312 Nm
(0.006638 ft.lb, 0.019619 ft.lb, 0.023012 ft.lb)- Rotational speed
2,750 rpm
(17,278.7596 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: B, optional F
System of protection: IP 44, optional up to IP 65
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, custom designed, foot mounting
Catalogs
Dg 71
4 Pages
