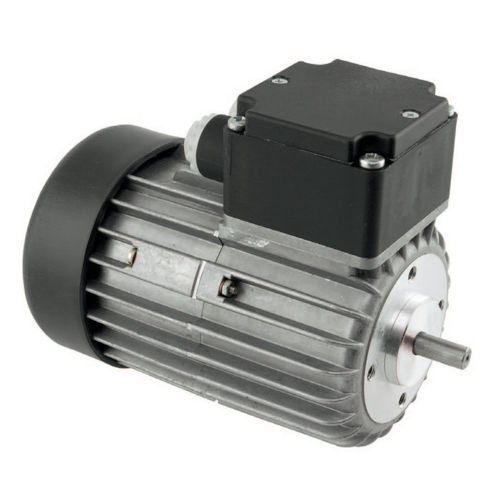

Asynchronous motor Eg 71 seriessingle-phase110 V380 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, single-phase
- Voltage
- 110 V, 380 V
- Configuration
- capacitor
- Protection class
- IP40
- Number of poles
- 2-pole
- Other characteristics
- custom, high-torque
- Power
22 W, 72 W, 89 W
(0.03 hp, 0.1 hp, 0.12 hp)- Intensity
270 mA, 590 mA, 700 mA
- Torque
0.0075 Nm, 0.025 Nm, 0.031 Nm
(0.005532 ft.lb, 0.018439 ft.lb, 0.022864 ft.lb)- Rotational speed
2,750 rpm
(17,278.7596 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: B, optional F
System of protection: IP 40
Special model: Design for short-time duty with high performance, Alloy rotor for higher starting torque
Options: Thermal protection, special shafts, custom designed
