Reversible motor KD 8 series
asynchronoussingle-phase400 V

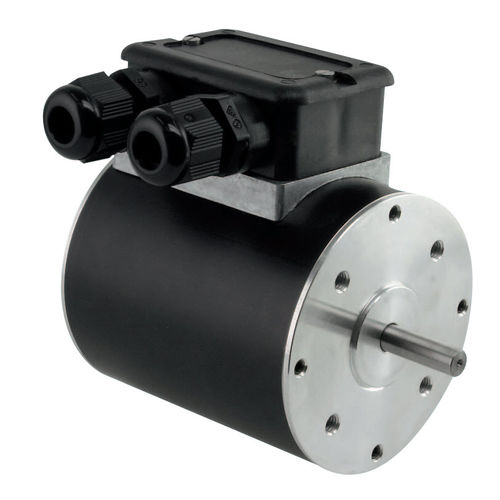

Reversible motor - KD 8 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / single-phase / 400 V
Reversible motor - KD 8 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / single-phase / 400 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, single-phase
Voltage
400 V, 380 V
Configuration
capacitor
Protection class
IP65, IP44
Number of poles
2-pole
Other characteristics
custom, reversible
Power

43 W, 47 W, 56 W, 65 W
(0.06 hp, 0.06 hp, 0.08 hp, 0.09 hp)

Intensity

187 mA, 194 mA, 331 mA, 337 mA

Torque

0.0155 Nm, 0.017 Nm, 0.0205 Nm, 0.0235 Nm
(0.011432 ft.lb, 0.012539 ft.lb, 0.01512 ft.lb, 0.017333 ft.lb)

Rotational speed

2,650 rpm
(16,650.4411 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Service life: 20,000 hours, S1 duty Insulation mat. class: B, optional F System of protection: IP 44, optional up to IP 65 Special model: Design for short-time duty with high performance Options: Thermal protection, special shafts, special flanges, custom designed

Catalogs

KD 8
KD 8
4 Pages
