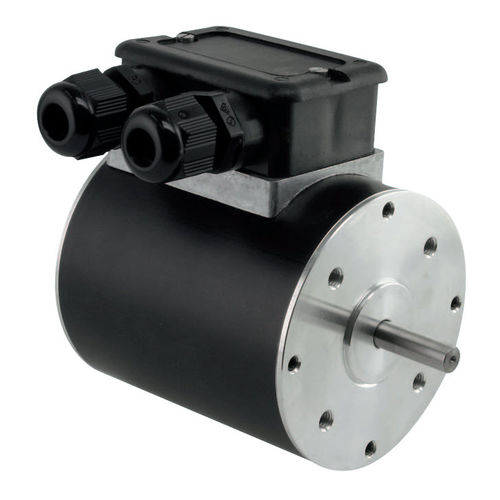

Reversible motor KD 6 series
asynchronoussingle-phase400 V

Reversible motor - KD 6 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / single-phase / 400 V
Reversible motor - KD 6 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / single-phase / 400 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, single-phase
Voltage
400 V, 380 V
Configuration
capacitor
Protection class
IP65, IP44
Number of poles
2-pole
Other characteristics
custom, reversible
Power

19 W, 24 W, 34 W, 42 W
(0.03 hp, 0.03 hp, 0.05 hp, 0.06 hp)

Intensity

70 mA, 110 mA, 152 mA, 290 mA

Torque

0.007 Nm, 0.0087 Nm, 0.0125 Nm, 0.0154 Nm
(0.005163 ft.lb, 0.006417 ft.lb, 0.00922 ft.lb, 0.011358 ft.lb)

Rotational speed

2,650 rpm
(16,650.4411 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Service life: 20,000 hours, S1 duty Insulation mat.class: B, optional F System of protection: IP 44, optional up to IP 65 Special model: Design for short-time duty with high performance Options: Thermal protection, special shafts, special flanges, custom designed

Catalogs

KD 6
KD 6
4 Pages
