- Power Transmission - Mechanical components
- Motor and Motor Control
- Asynchronous motor
- Gefeg-Neckar Antriebssysteme GmbH

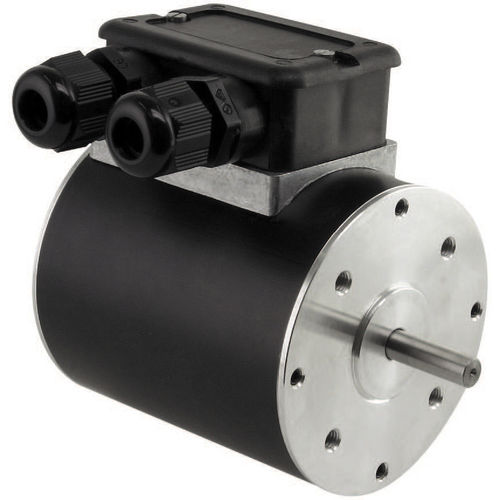

Reversible motor KD 6 seriesasynchronoussingle-phase400 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, single-phase
- Voltage
- 400 V, 380 V
- Configuration
- capacitor
- Protection class
- IP65, IP44
- Number of poles
- 4-pole
- Other characteristics
- custom, reversible
- Power
11 W, 12 W, 13 W, 15 W
(0.01 hp, 0.02 hp, 0.02 hp, 0.02 hp)- Intensity
75 mA, 82 mA, 153 mA, 185 mA
- Torque
0.0091 Nm, 0.0095 Nm, 0.0101 Nm, 0.0114 Nm
(0.006712 ft.lb, 0.007007 ft.lb, 0.007449 ft.lb, 0.008408 ft.lb)- Rotational speed
1,250 rpm
(7,853.9816 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Service life: 20,000 hours, S1 duty
Insulation mat. class: B, optional F
System of protection: IP 44, optional up to IP 65
Special model: Design for short-time duty with high performance
Options: Thermal protection, special shafts, special flanges, custom designed
Catalogs
KD 6
4 Pages
