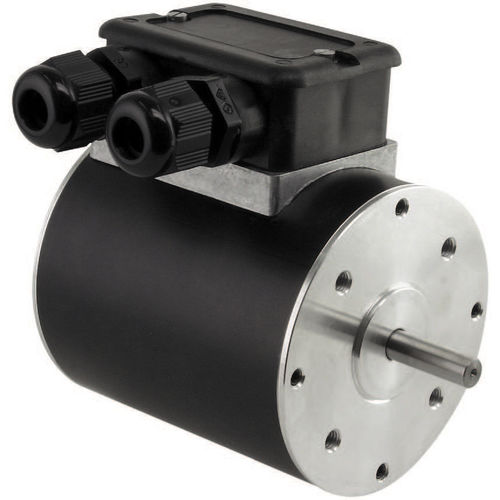

Reversible motor KD 8 series
asynchronoussingle-phase400 V

Reversible motor - KD 8 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / single-phase / 400 V
Reversible motor - KD 8 series - Gefeg-Neckar Antriebssysteme GmbH - asynchronous / single-phase / 400 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, single-phase
Voltage
400 V, 380 V
Configuration
capacitor
Protection class
IP65, IP44
Number of poles
4-pole
Other characteristics
custom, reversible
Power

21 W, 27 W, 31 W, 36 W
(0.03 hp, 0.04 hp, 0.04 hp, 0.05 hp)

Intensity

142 mA, 154 mA, 229 mA, 321 mA

Torque

0.013 Nm, 0.022 Nm, 0.026 Nm, 0.031 Nm
(0.009588 ft.lb, 0.016226 ft.lb, 0.019177 ft.lb, 0.022864 ft.lb)

Rotational speed

1,250 rpm
(7,853.9816 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Service life: 20,000 hours, S1 duty Insulation mat. class: B, optional F System of protection: IP 44, optional up to IP 65 Special model: Design for short-time duty with high performance Options: Thermal protection, special shafts, special flanges, custom designed

Catalogs

KD 8
KD 8
4 Pages
