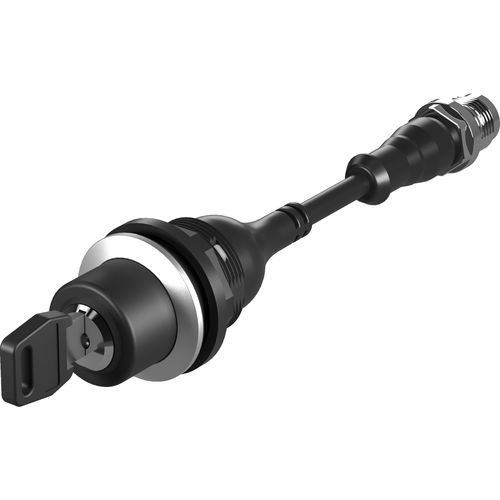

Key lock push-button switch SHORTRON®-M12 SSSA12II_M07
IP652 NODC

Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC
Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC
Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC - image - 2
Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC - image - 3
Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC - image - 4
Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC - image - 5
Key lock push-button switch - SHORTRON®-M12 SSSA12II_M07 - Georg Schlegel GmbH & Co. KG - IP65 / 2 NO / DC - image - 6
Add to favorites
Compare this product
Go to the Georg Schlegel GmbH & Co. KG website for more information

Characteristics

Type
key lock
Protection level
IP65
Contact configuration
2 NO
Other characteristics
DC, AC, non-illuminated, momentary, round

Description

• Operating Temperature : -25 ... 70°C • Electrical Life : 30.000 switching cycles at rated load 30.000 switching cycles • Approbations : VDE , cURus , ENEC10 , CE , UKCA • Connection Type : M12 plugs • Storage Temperature : -40 ... 80°C • Switching Function : Latching function • Protection Class Front : IP65 • Rated Operating Voltage : 35V DC IEC/EN 60947-5-1 35V AC IEC/EN 60947-5-1 • Switching Position : -90° key removal 90° key removal 0° key removal • Operating Travel : 2,3mm • Mounting Aperture : Ø 22,3mm • Cable Length : 250mm • Mechanical Life : 30.000 switching cycles • Front Bezel Color : silver
