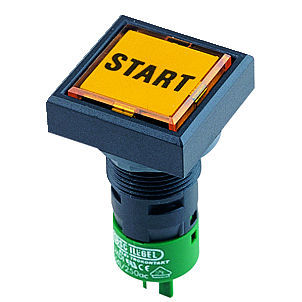

IP65 push-button switch QUARTRON® QXDI

1 NODCAC

Short-stroke pushbutton 1 NO Approvals DNVGL , VDE , UR , CCC , ENEC10 , CE , UKCA Mechanical life 1.000.000 switching cycles Rated insulation voltage IEC/EN 60947-5-1 250 V DC 300 V DC 300 V AC 250 V AC Protection class II (protective insulation) Storage temperature -50 ... 85°C Mounting aperture Ø 16,2mm Operating travel 3mm Operating temperature -30 ... 70°C Front bezel colour black Rated operating current 3 A AC 2 A DC 1 A DC 0.4 A DC 0.2 A DC Rated operating voltage 250 V DC 24 V DC 125 V DC 240 V AC 60 V DC
