- IP65 push-button switch
- Georg Schlegel GmbH & Co. KG

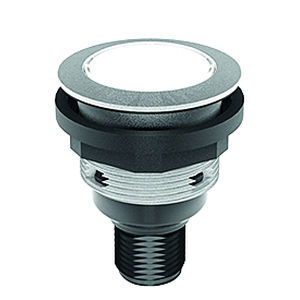

IP65 push-button switch SHORTRON® connect STI_C007IP671 NOnon-illuminated
Add to favorites
Compare this product
Characteristics
- Protection level
- IP65, IP67
- Contact configuration
- 1 NO
- Other characteristics
- non-illuminated, round
Description
Pushbutton with 4-pole M12 connector
Operating temperature
-25 ... 70°C
Mechanical life
1.000.000 switching cycles
Approvals
VDE , cURus , ENEC10 , CE , UKCA
Storage temperature
-40 ... 80°C
Protection class
II (protective insulation)
Operating travel
2,3mm
Rated insulation voltage IEC/EN 60947-5-1
50 V DC
50 V AC
Mounting aperture
Ø 22,3mm
Electrical life
1.000.000 switching cycles
Front bezel colour
silver
Rated operating voltage
35 V DC
35 V AC
Rated operating current
4 A AC
2 A AC
2 A DC
