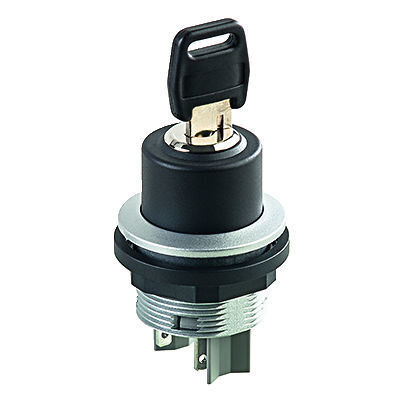

Key lock switch SHORTRON® SSSA12II

bipolarIP65panel mount

Key-operated switch, maintained Operating temperature -25 ... 70°C Approvals DNV, VDE , CCC , cURus , ENEC10 , CE , UKCA Contact type 2NO Rated insulation voltage IEC/EN 60947-5-1 250 V DC 250 V AC Storage temperature -40 ... 80°C Switching function Maintained function Electrical life 30.000 switching cycles Operating travel 2,3mm Switching position 0° key removal -90° maintained, key removal 90° maintained, key removal Mounting aperture Ø 22,3mm Mechanical life 30.000 switching cycles Front bezel colour silver Rated operating voltage 250 V DC 24 V DC 125 V DC 240 V AC 60 V DC 120 V AC Rated operating current 0,55 A DC 0,27 A DC 1,5 A AC 3 A AC 2 A DC 1 A DC
