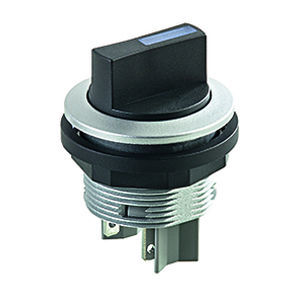

Selector switch SHORTRON® SSTAI

springsingle-poleIP65

Selector switch, momentary Operating temperature -25 ... 70°C Switching position -45° idle position 45° momentary Contact type 1NO Approvals DNV, VDE , CCC , cURus , ENEC10 , CE , UKCA Switching function Momentary function Rated insulation voltage IEC/EN 60947-5-1 250 V DC 250 V AC Storage temperature -40 ... 80°C Electrical life 30.000 switching cycles Operating travel 2,3mm Mounting aperture Ø 22,3mm Mechanical life 30.000 switching cycles Front bezel colour silver Rated operating voltage 250 V DC 24 V DC 125 V DC 240 V AC 60 V DC 120 V AC Rated operating current 0,55 A DC 0,27 A DC 1,5 A AC 3 A AC 2 A DC 1 A DC
