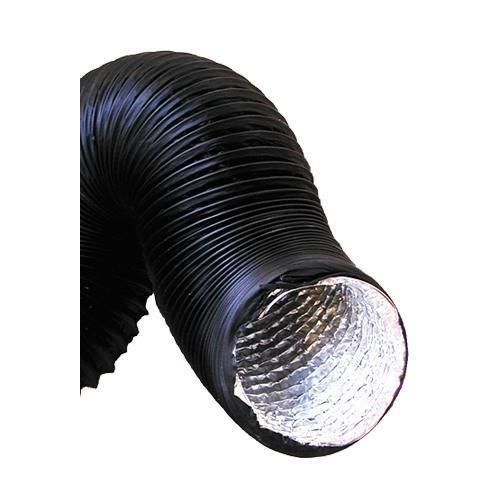

Spiral air duct GeoFlex Standard

flexiblemultilayerround

Description The GeoFlex Standard is a multipurpose ventilation hose designed for extraction of welding fumes, grinding dust, vapours and similar airborne pollutants. Constructed from a 5-layer PVC laminate with an inner aluminium foil and steel spiral reinforcement, the hose combines low weight with mechanical stability for easy handling and installation. It is antistatic and spark-proof and operates across a wide temperature range (-40°C to +140°C). Standard length 10 m; diameters from ø50 mm to ø254 mm suit single workstations and larger industrial systems.

What do you get?

• Low weight for easy handling and installation.
• High flexibility for versatile routing and integration.
• Antistatic and spark‑proof design for improved operational safety.
• Wide temperature resistance: -40°C to +140°C.
• 5‑layer PVC laminate with inner aluminium foil and steel spiral reinforcement.
• Available diameters: ø50 mm – ø254 mm.
• Compatible with extraction arms such as WING, ASA-3, COMPACT and MINI.

Technical data
Material: PVC / ALU
Temperature range: -40°C – +140°C
Bending radius: 29 mm – 147 mm
Lengths: 1 m – 10 m (standard 10 m)
Diameter: ø50 mm – ø254 mm
Weight: 0.14 kg – 0.61 kg per metre

Specifications

• Material: PVC with inner aluminium foil (PVC / ALU).
• Construction: 5‑layer laminate reinforced with steel spiral.
• Temperature resistance: -40°C to +140°C.
• Bending radius: 29 mm – 147 mm (depending on diameter).
• Available lengths: 1 m – 10 m (standard 10 m; special lengths on request).
• Available diameters: ø50 mm – ø254 mm.
• Weight: 0.14 kg – 0.61 kg per metre (varies by diameter).
• Safety: Antistatic and spark‑proof.
