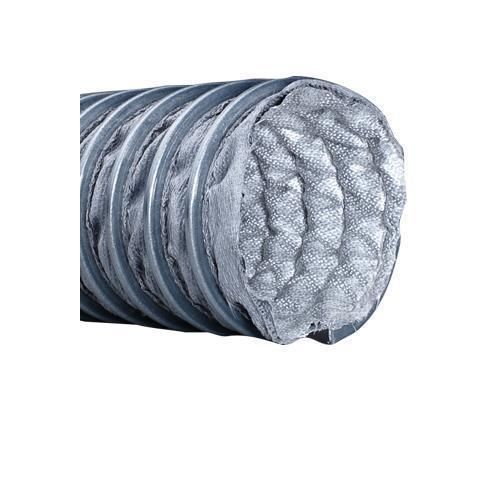

Gas hose GeoFlex Exhaust HT-650

for hot airfor dustfor exhaust gas

Short description
The GeoFlex Exhaust HT-650 is a high-temperature extraction and supply hose for hot air, fumes, exhaust and process gases, smoke and dust. It is designed for continuous operation up to 600°C with short-term peaks to 700°C. The construction combines a 2-ply PU-coated high-temperature fabric, stainless steel reinforcement and a stainless steel spiral with a clip clamping profile and an outer wear strip for mechanical protection.

Key features

• Continuous temperature resistance up to +600°C; short-term peaks up to +700°C.
• Suitable for hot air, fumes, exhaust/process gases, smoke and dust.
• 2-ply PU-coated high-temperature fabric reinforced with stainless steel.
• Flame-retardant and silicone-free materials.
• Stainless steel spiral supported by a clip clamping profile and external wear strip.
• Excellent axial compressibility for compact handling and storage.
• Available lengths 1–10 m; diameters ø102 mm – ø315 mm; custom lengths on request.

Applications and design
The GeoFlex Exhaust HT-650 is engineered to transport or extract hot air and combustion or process gases from large vehicles, industrial equipment, ovens and heaters. The hose is silver-grey and designed for easy handling, storage and installation in confined spaces. The clip clamping profile supports the stainless steel spiral to combine flexibility with structural integrity under high-temperature conditions.

Technical data
Material: special high-temperature fabric / stainless steel spiral
Temperature range: -60°C – +600°C (short-term up to +700°C)
Bending radius: 53 mm – 139 mm
Lengths: 1 m – 10 m
Diameter: ø102 mm – ø315 mm
Weight: 2.1 kg – 4.35 kg per metre

Technical specifications

• Material: 2-ply PU-coated high-temperature fabric with stainless steel woven reinforcement and stainless steel spiral.
• Temperature range: continuous -60°C to +600°C; short-term up to +700°C.
• Bending radius: 53 mm – 139 mm (depending on diameter).
• Lengths: standard 1 m to 10 m; custom lengths available on request.
• Diameters: ø102 mm to ø315 mm.
• Weight: approx. 2.1 kg – 4.35 kg per metre (depending on diameter).
• Construction: clip clamping profile, external wear strip for increased protection.
• Intended use: extraction/supply of hot air, fumes, exhaust/process gases, smoke and dust in industrial applications.
