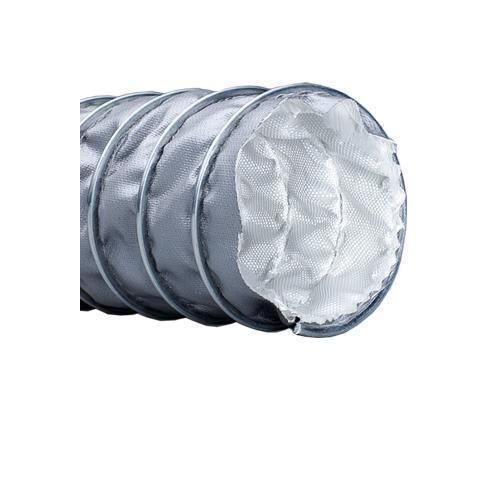

Multilayer air duct GeoFlex Exhaust HT-450

flexiblespiralround

Short description
The GeoFlex Exhaust HT-450 is a high-temperature exhaust/supply hose for hot air, fumes, exhaust gases and dust. Constructed from silicone-coated fibreglass with a stainless/galvanised steel spiral, it withstands continuous temperatures from -60°C to +450°C (short-term up to +500°C). The compressible design and outer wear strip make it suitable for mobile and fixed extraction in demanding industrial and vehicle exhaust applications.

What do you get?

• Temperature resistance up to +450°C (short-term +500°C).
• Designed for hot air, fumes, exhaust gases and dust extraction/supply.
• Silicone-coated fibreglass outer for thermal durability.
• Reinforcement by stainless/galvanised steel spiral for stability.
• Compressible construction for easy handling and storage.
• Flame-retardant materials and external wear strip for mechanical protection.
• Available in multiple diameters and standard lengths; custom sizes on request.

Product information
The hose features a multi-layer wall with a silicone-coated fibreglass outer and an internal stainless/galvanised steel spiral providing axial and radial stability. Temperature range is continuous -60°C to +450°C with short-term resistance up to +500°C. The compressible profile permits use in confined spaces and supports both fixed installation and mobile extraction systems such as vehicle exhaust extraction and industrial ovens. Standard lengths range from 1 m to 10 m; non-standard lengths and customised assemblies are available on request.

Technical data
Material: Silicone-coated fibreglass / stainless or galvanised steel spiral
Temperature range: -60°C – +450°C (short-term +500°C)
Bending radius: 51 mm – 48 mm
Lengths: 1 m – 10 m (standard)
Diameter: ø102 mm – ø315 mm (standard; some references ø102–ø203 mm; larger sizes on request)
Weight: approx. 2.1 kg – 4.35 kg per metre depending on diameter

Specifications

• Construction: Silicone-coated fibreglass with stainless/galvanised steel spiral reinforcement.
• Temperature resistance: continuous -60°C to +450°C; short-term up to +500°C.
• Applications: extraction/supply of hot air, fumes, exhaust gases, smoke and dust; suitable for vehicle exhaust extraction and industrial ovens.
• Lengths available: 1 m to 10 m (standard); custom lengths on request.
• Diameter range: ø102 mm – ø315 mm (standard); custom diameters available on request.
• Bending radius: 51 mm – 48 mm (depending on diameter).
• Weight: approximately 2.1–4.35 kg/m depending on diameter.
• Features: compressible design, flame-retardant materials, silver-grey finish with outer wear strip for mechanical protection.
