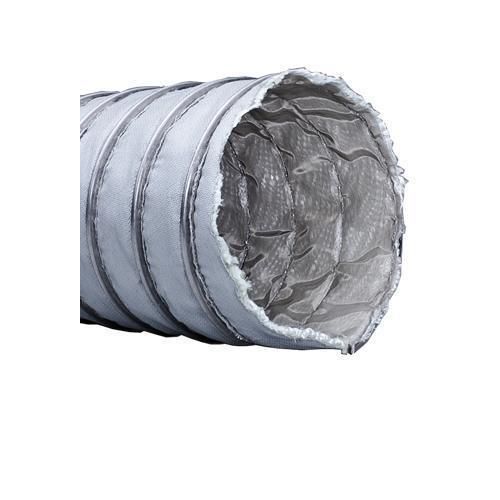

Hot air hose GeoFlex Exhaust HT-1100

for exhaust gasPUstainless steel

Product overview
GeoFlex Exhaust HT-1100 is a flexible high-temperature exhaust hose designed for extraction or supply of hot air, fumes, exhaust gases, smoke and dust. It operates continuously from -60°C to +900°C and resists short-term peaks up to 1,100°C. The hose features a three-layer construction—inner high-temperature stainless steel fabric, a high-temperature insulation middle layer, and an outer PU-coated high-temperature fabric reinforced with a stainless steel spiral—providing heat resistance, flexibility and mechanical strength for demanding industrial environments.

What do you get?

• Short-term temperature resistance up to 1,100°C.
• Durable three-layer construction with stainless steel and PU-coated outer fabric.
• Suitable for exhaust gases, hot air, fumes, smoke and dust.
• Designed for heavy-duty industrial applications, including vehicle exhaust extraction and oven ventilation.
• Flame retardant and silicone free.
• Excellent flexibility and axial compressibility for installation in confined spaces.
• Available in standard lengths from 1 to 10 metres.

Product information
The GeoFlex Exhaust HT-1100 is manufactured with a three-layer design: an inner layer of high-temperature stainless steel fabric, a middle layer of high-temperature insulation, and an outer PU-coated high-temperature fabric reinforced with a stainless steel spiral. This combination ensures mechanical strength, wear resistance and flexibility while remaining flame retardant and silicone free. Typical uses include extraction of exhaust gases from large vehicles (locomotives, tanks, excavators) and ventilation of hot air from industrial ovens or heaters. The hose is available in diameters from ø102 mm to ø203 mm and in lengths from 1 to 10 metres. Special lengths and diameters within this range are available as standard options.

Technical data
Material: 3-layer special high-temperature fabric with stainless steel spiral
Temperature range: -60°C to +900°C (continuous), short-term up to 1,100°C
Bending radius: 64 mm – 114 mm
Lengths: 1 m – 10 m
Diameter: ø102 mm – ø203 mm
Weight: 2.8 kg – 4.03 kg per metre

Features / Technical specifications

• Construction: 3-layer (inner stainless steel fabric, high-temperature insulation middle layer, outer PU-coated high-temp fabric reinforced with stainless steel spiral).
• Operating temperature range: -60°C to +900°C (continuous).
• Short-term peak temperature resistance: up to 1,100°C.
• Available diameters: ø102 mm to ø203 mm.
• Available lengths: 1 m to 10 m (standard).
• Bending radius range: 64 mm to 114 mm.
• Weight: approximately 2.8 kg to 4.03 kg per metre depending on diameter.
• Properties: flame retardant, silicone free, excellent flexibility and axial compressibility, high mechanical strength and wear resistance.
• Applications: extraction/supply of hot air, exhaust gases, fumes, smoke and dust in heavy-duty industrial settings (e.g., vehicle exhaust extraction, industrial oven ventilation).
