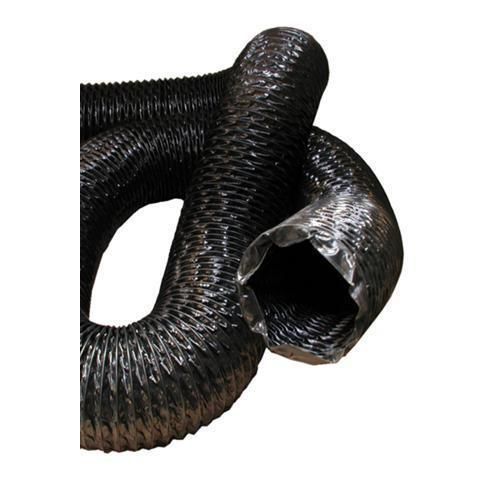

PVC hose GeoFlex Weldpolyestersteelfor fume extraction
Add to favorites
Compare this product
Characteristics
- Material
- PVC, polyester, steel
- Applications
- for fume extraction, for ventilation, for welding
- Other characteristics
- flexible, spiral wire, lightweight, flame-retardant
- Inner diameter
Min.: 50 mm
(1.969 in)Max.: 500 mm
(19.685 in)- Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Delivered length
Min.: 1 m
(3'03" )Max.: 10 m
(32'09" )
Description
Overview
The GeoFlex Weld is a lightweight, flexible PVC extraction hose designed for removing welding fumes and vapours and for ventilating tanks, cargo holds and confined spaces. It is flame-retardant and resists temperatures from -10°C to +60°C (short-term peaks up to +110°C). Constructed from PVC-coated polyester fabric with an integrated steel wire spiral for structural strength, it offers excellent flexibility, compression and easy handling. Compatible with Geovent extraction arms and portable fans (for example PM-180).
What do you get?
Product information
GeoFlex Weld is specifically designed for efficient extraction and ventilation in demanding environments such as welding workshops, shipyards, industrial maintenance and HVAC applications. The steel spiral provides shape retention while allowing the hose to collapse for storage. Standard lengths include 2, 3, 4, 5 or 10 metres; special lengths are available on request. Diameters range broadly to match airflow requirements.
Technical data (table)
Material: PVC-coated polyester fabric with steel wire spiral
Temperature range: -10°C – +60°C (short-term up to +110°C)
Bending radius: 43 mm – 129 mm
Lengths: 1 m – 10 m
Diameter: ø50 mm – ø500 mm
Weight: 0.19 kg – 1.54 kg per metre
Features / Technical specifications
The GeoFlex Weld is a lightweight, flexible PVC extraction hose designed for removing welding fumes and vapours and for ventilating tanks, cargo holds and confined spaces. It is flame-retardant and resists temperatures from -10°C to +60°C (short-term peaks up to +110°C). Constructed from PVC-coated polyester fabric with an integrated steel wire spiral for structural strength, it offers excellent flexibility, compression and easy handling. Compatible with Geovent extraction arms and portable fans (for example PM-180).
What do you get?
- Lightweight and easy to handle.
- Highly flexible for versatile use.
- Flame retardant according to NF P 92-503 M2.
- Durable PVC-coated polyester fabric.
- Excellent compression capabilities.
- Wide range of diameters and lengths available.
- Suitable for welding fumes, vapours and ventilation of confined spaces.
Product information
GeoFlex Weld is specifically designed for efficient extraction and ventilation in demanding environments such as welding workshops, shipyards, industrial maintenance and HVAC applications. The steel spiral provides shape retention while allowing the hose to collapse for storage. Standard lengths include 2, 3, 4, 5 or 10 metres; special lengths are available on request. Diameters range broadly to match airflow requirements.
Technical data (table)
Material: PVC-coated polyester fabric with steel wire spiral
Temperature range: -10°C – +60°C (short-term up to +110°C)
Bending radius: 43 mm – 129 mm
Lengths: 1 m – 10 m
Diameter: ø50 mm – ø500 mm
Weight: 0.19 kg – 1.54 kg per metre
Features / Technical specifications
- Construction: PVC-coated polyester fabric with integrated steel wire spiral for strength and flexibility.
- Temperature resistance: -10°C to +60°C (short-term peaks up to +110°C).
- Flame retardancy: NF P 92-503 M2 classification.
- Bending radius: 43 mm – 129 mm depending on diameter.
- Available lengths: standard 2, 3, 4, 5 or 10 m (special lengths on request); technical range 1 m – 10 m.
- Available diameters: ø50 mm – ø500 mm.
- Weight: from 0.19 kg to 1.54 kg per metre depending on diameter.
- Applications: extraction of welding fumes, vapours, ventilation of tanks and cargo holds; compatible with extraction arms and portable fans.
