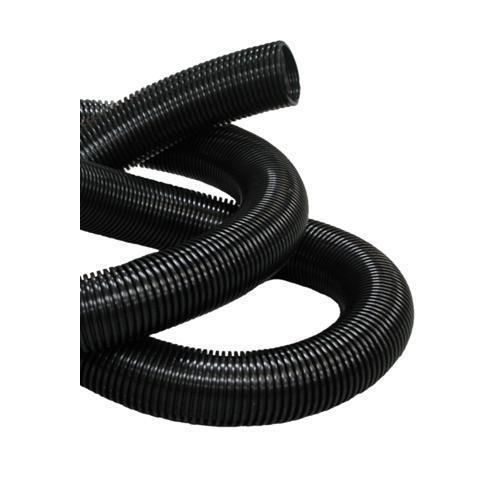

Air hose GeoFlex High

for dustEVAflexible

Short description
GeoFlex High is a lightweight, flexible extraction hose made of EVA for medium-to-high vacuum applications. Designed for removal of hot fumes, dust, air and welding fumes. Self-supporting corrugated construction without an internal spiral. Available in antistatic (black) and non-antistatic versions, multiple colours and lengths up to 20 m.

What do you get?

• Lightweight construction for easier handling and installation.
• High flexibility for tight routing and manoeuvring in extraction systems.
• Suitable for medium-to-high vacuum extraction tasks.
• Designed to convey hot fumes, dust, air and welding fumes.
• Self-supporting corrugated design — no internal spiral required.
• Antistatic option (black) for installations sensitive to electrostatic build-up.
• Multiple diameter and length options; lengths up to 20 m and colour variants for identification.

Product information
The GeoFlex High is manufactured from ethylene-vinyl-acetate (EVA). The hose is extruded and corrugated both inside and out to provide strength and manoeuvrability while remaining self-supporting. Normal operating temperature range is -20°C to +60°C, with short-term resistance up to 125°C. Standard diameters are available from ø32 mm to ø64 mm and standard lengths range up to 20 m. The black version is antistatic for applications sensitive to static build-up. Custom lengths and non-standard diameters can be supplied on request to match specific installation requirements.

Technical data (table)
Material: EVA (ethylene-vinyl-acetate), antistatic option available
Temperature range: -20°C to +60°C (short-term up to 125°C)
Bending radius: 80 mm – 250 mm
Lengths: 1 m – 20 m
Diameter: ø32 mm – ø64 mm
Weight: 0.75 kg – 1.6 kg per metre

Features / Technical specifications

• Material: EVA, antistatic option available
• Temperature resistance: -20°C to +60°C (short-term up to 125°C)
• Bending radius: 80–250 mm depending on diameter
• Lengths: from 1 m up to 20 m; custom lengths on request
• Diameter options: ø32, ø38, ø50, ø64 mm (depending on range)
• Weight: approx. 0.75–1.6 kg/m
• Construction: extruded and corrugated inside and out, self-supporting (no internal spiral)
• Colours: yellow, grey, black (black available as antistatic)
• Applications: medium-to-high vacuum extraction for hot fumes, dust, air and welding fumes
