Exhaust gas hose GeoFlex Exhaust

polypropylenenylonTPE

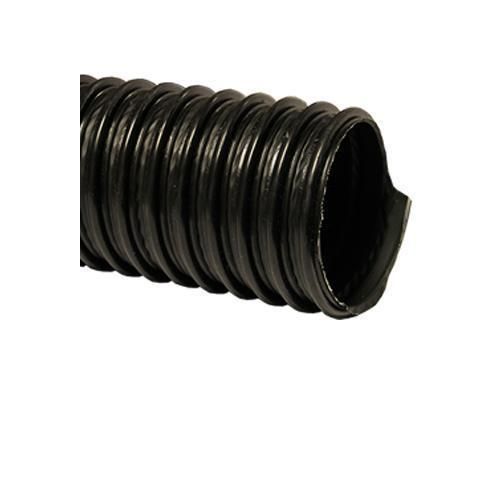

Overview The GeoFlex Exhaust is an ultra-lightweight, highly flexible extraction hose engineered for removal of exhaust fumes and welding smoke. Constructed from TPE foil with an externally embedded nylon spiral, it provides flexibility and reinforcement while minimising pressure loss during extraction.

What do you get?

• Lightweight construction for easy handling, installation and rewinding on reels.
• High flexibility for tight radii and adaptable routing in workshops and garages.
• Heat resistance up to 170°C continuous (short-term peaks to 200°C).
• Durable TPE foil with externally embedded nylon spiral for mechanical reinforcement.
• Compatible with hose reels, motorised lifting systems and channel ducts.
• Can tolerate occasional overrunning by light vehicles; avoid repeated pressure at the same spot.
• Available in standard lengths (5, 7.5, 10, 15 m) and diameters (Ø76–Ø200 mm).

Product information The external nylon spiral increases structural stability and reduces pressure loss, improving extraction efficiency. GeoFlex Exhaust is suitable for fixed installations and mobile setups in demanding environments such as garages, vehicle service bays and industrial workshops. Use within specified thermal and mechanical limits to ensure long service life.

Technical data Material: TPE foil with externally embedded nylon spiral (listed as EPDM / PP – plastic spiral in specification table).
Temperature range: up to 170°C continuous — short‑term peaks up to 200°C.
Bending radius: 71 mm – 143 mm.
Lengths: 5 m, 7.5 m, 10 m, 15 m.
Diameter: Ø76 – Ø200 mm.
Weight: 2.7 kg – 20.6 kg.

Specifications

• Material: TPE foil with externally embedded nylon spiral (spec table: EPDM / PP – plastic spiral).
• Continuous temperature resistance: up to 170°C; short-term peaks up to 200°C.
• Bending radius range: 71 mm – 143 mm.
• Standard lengths: 5 m, 7.5 m, 10 m, 15 m.
• Available diameters: Ø76 mm – Ø200 mm.
• Weight range (depending on size): 2.7 kg – 20.6 kg.
• Designed for compatibility with hose reels, lifting systems and channel ducts.
• External spiral reduces pressure loss and reinforces the hose.
• Can tolerate occasional overrunning by light vehicles; repeated pressure in the same spot may cause damage.
