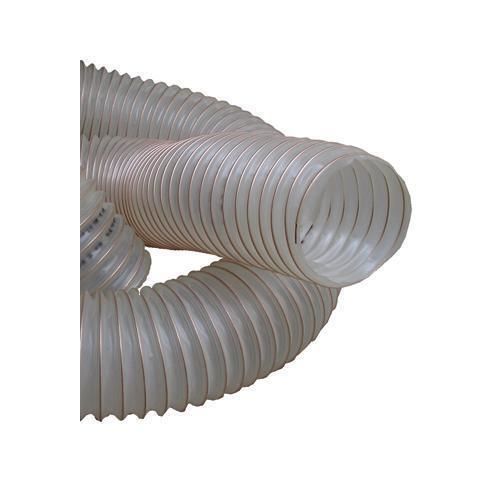

Extrication hose GeoFlex PUR

for dustpolyurethanePUR

Overview
The GeoFlex PUR is a clear antistatic polyurethane (PUR) extraction hose designed for the transport and extraction of dust, chips, granulate and powder. It resists oil and petrol fumes and is engineered for demanding applications in woodworking, food processing and medical environments. The hose combines flexibility, compressibility and long service life for industrial use.

What do you get?

• Transparent, antistatic PUR hose suitable for extraction and material transport.
• Resistance to oil and petrol fumes for industrial extraction systems.
• Tested electrical resistance R < 10⁹ Ω; compliant with ATEX zones 1, 2 and 22.
• Low weight, high flexibility and strong compressibility for easier handling and storage.
• Standard lengths up to 15 m; custom lengths and dimensions available.
• Diameter range ø50 mm – ø250 mm; compatible with extraction arms and ducting systems.

Product information
The GeoFlex PUR is manufactured from polyester-polyurethane (PUR) with an integrated spring steel helix. The patented Protape® construction provides extended service life while maintaining flexibility and compressibility. It is intended for transport and extraction of dust, chips, granulate and powder and is suitable for extraction of oil and petrol fumes. Electrical resistance has been tested at R < 10⁹ Ω to meet ATEX requirements for zones 1, 2 and 22. The hose is commonly mounted on extraction arms but can be used with various arm and hood models. Operating temperature is rated for continuous use from -40°C to +60°C, with short-term peaks up to +125°C.

Technical specifications

• Material: antistatic PUR (polyester-polyurethane) with integrated spring steel helix; Protape® construction.
• Electrical resistance: tested R < 10⁹ Ω (antistatic).
• Temperature range: -40°C to +60°C (short-term peaks up to +125°C).
• Bending radius: 33 mm – 133 mm.
• Lengths: 1 m – 15 m (standard; custom lengths available).
• Diameter range: ø50 mm – ø250 mm.
• Weight: 0.37 kg – 1.64 kg per metre (depending on diameter).
• Applications: transport/extraction of dust, chips, granulate, powder; suitable for woodworking, food processing and medical environments; resistant to oil and petrol fumes.
• ATEX compliance: suitable for zones 1, 2 and 22.
