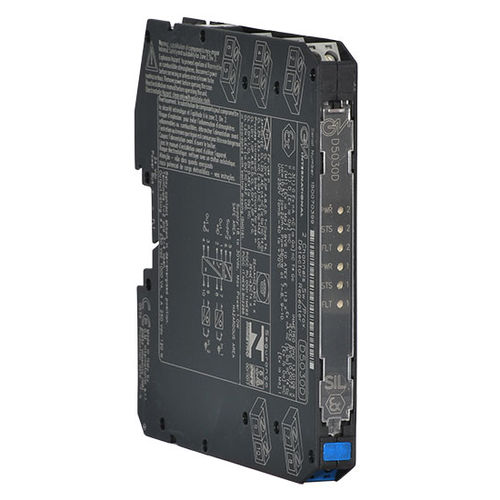

Industrial repeater D5030D

24V DCcurrentisolated

The Switch/Proximity Detector Repeater D5030 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to a relay contact in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. In the double-channel model, the second output can be configured to repeat the second input, to duplicate the first input or to report the first input fault. If needed, the output can also be inverted. FEATURES SIL 3 / SC 3 Input from Zone 0/Div. 1 Installation in Zone 2/Div. 2 2 fully independent channels High voltage/current rating relay output Field open and short circuit detection In-field programmability by DIP Switch Three port isolation, Input/Output/Supply High Density, two channels per unit
