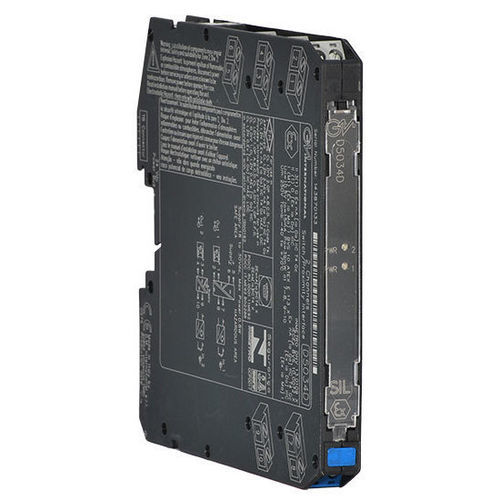

Current repeater D5034D

The Switch/Proximity Detector Repeater D5034D is a module suitable for applications requiring SIL 3 level in safety-related systems for high-risk industries. The unit can be connected to switches or proximity detectors, located in Hazardous Area, and repeats the input current to the output in Safe Area. DCS/PLC Digital Input cards compatible with NAMUR devices can detect the status/fault of proximity sensors or switches equipped with end of line resistors, in transparent mode, through the module. - SIL 3/ SC 3 - Input from Zone 0/Div. 1 - Installation in Zone 2/Div. 2 - 2 fully independent channels - Field fault mirroring to PLC NAMUR DI - High Accuracy - Three port isolation, Input/Output/Supply - High Density, two channels per unit Technical Specifications: Supply - Voltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected. - Current Consumption: 30 mA @ 24 Vdc with short circuit input, typical. - Power Dissipation: 0.72 W @ 24 Vdc with short circuit input, typical. Input - Current range: ≥ 0.1 mA to ≤ 8.0 mA. - Input equivalent source: 8 V 1 kΩ typical (8 V no load, 8 mA short). Output - Type: 0.1 to 8.0 mA in sink mode, V max. 30 V, current limited ≈ 8 mA, repeats input current level. - Response time: 1 ms (0 to 100 % step change). - Power Dissipation: 0.4 W @ 24 Vdc with short circuit input, typical. Performance - Ref. Conditions: 24 V supply, 23 ± 1 °C ambient temperature. - Calibration accuracy: ≤ ± 0.25 % FSR. - Linearity accuracy: ≤ ± 0.25 % FSR. - Temp. influence: ≤ ± 0.03 % FSR on zero/span for a 1 °C change. Isolation - Test Voltage: I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out /Out 500 V. Environmental conditions - Operating temperature: temperature limits –40 to +70 °C. - Storage temperature: temperature limits –45 to +80 °C. Safety description - Equipment: Associated apparatus and non-sparking electrical equipment. - Safety parameters: Uo = 10.5 V, Io = 15 mA, Po = 39 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. Mounting - Type: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. - Weight: about 140 g. - Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). - Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm. - Status: ACTIVE - Channels: 2
