Current repeater D5232Q

ATEXSIL 2

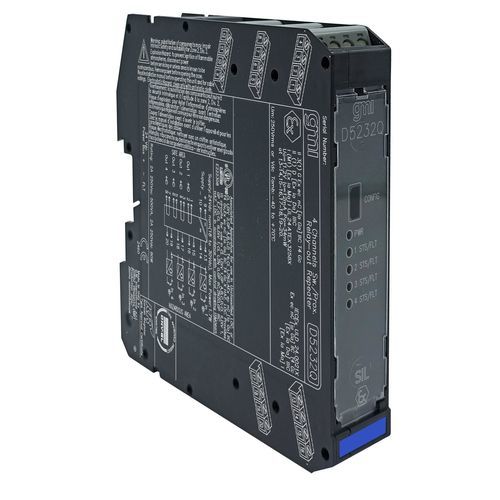

I.S. SIL2 Switch/Proximity Relay-Out RepeaterThe Switch/Proximity Detector Repeater D5232 is a module suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to a relay contact in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end-of-line resistors. Input-to-output function can be inverted, and signals can be duplicated.SIL 2 / SC 3 (pending)Input from Zone 0/Div. 1Installation in Zone 2/Div. 2High output currentField open and short circuit detectionInput inversion availableDuplication availableThree port isolation, Input/Output/SupplyHigh Density, four channels per unitTechnical Specifications:Supply:Voltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption: 75 mA @ 24 Vdc with short circuit input and output closed, typical.Power Dissipation: 1.8 W @ 24 Vdc with short circuit input and output closed, typical, excluding output contact dissipation.Input:Type: Voltage source according to NAMUR standard.Input equivalent source: 7.5 V/1 kΩ typical (7.5 V no load, 7.5 mA short).Input switching current levels: ON ≥ 2.1 mA, OFF ≤ 1.2 mA.No Fault: input current ≥ 0.35 mA and input resistance ≥ 360 Ω.Open Fault: input current ≤ 0.05 mA.Short fault: input resistance ≤ 100 Ω.Output:Type: Voltage free SPST relay contact.Contact material: AgNi90/10.Contact rating: 2 A 250 Vac 500 VA, 2 A 250 Vdc 80 W (resistive load).Mechanical / electrical life: 15 * 10⁶ / 10 * 10⁴ operation, typical.Input-output delay: 20 ms, maximum.Frequency response: 10 Hz, maximum.Isolation:Test Voltage: I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; Out/Supply 500 V; Out/Out 500 V.Environmental conditions:Operating temperature: –40 to +70 °C.Storage temperature: –45 to +80 °C.Safety description:Equipment: Associated apparatus and non-sparking electrical equipment.Safety parameters: Uo = 11.2 V, Io = 12 mA, Po = 34 mW at terminals 13-14, 15-16, 17-18, 19-20. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.Mounting:Type: DIN-Rail 35 mm, with or without Power Bus.Weight: about 175 g.Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).Dimensions: Width 22.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVECertifications:ATEX: UL ATEX D5232, D5233 Series English Certificate (Europe, UL 24 ATEX 3258X, UL, 2024-11-08)Ex: UL-cUL D5232, D5233 Divisions and Zones (North America, UL-US-2438735-0, UL, 2024-11-14)IECEx: UL IECEx D5232, D5233 Series English Certificate (International, IECEx ULD 24.0021X, UL, 2024-11-08)Maritime: KR Maritime Certificate D5000 Series (International, MIL20769-EL002, KR, 2024-06-26)Maritime: DNV Maritime Certificate TAA00001U0 for D5000 series (International, TAA00001U0, DNV-GL, 2024-04-02)Declarations of Conformity:EU Declaration of Conformity for D5232, D5233Declaration of Conformity G3 compliance
