RS-485 repeater D5231E

interfacecurrent

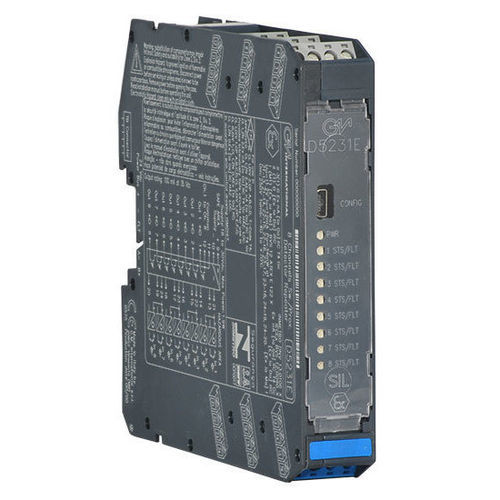

The Switch/Proximity Detector Repeater D5231E is a module suitable for applications requiring SIL 2 level in safety-related systems for high-risk industries. The unit can be configured for switches or proximity detectors located in Hazardous Area, and repeats the input state to a solid-state relay contact in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. The module is fully configurable to achieve input/output multiplexing, duplication, inversion, and input logical elaboration (AND, OR). Each output can also be configured to report the cumulative fault of any input subset. Configuration and diagnostic parameters are programmable and can also be monitored/set through Modbus. - SIL 2 / SC 3 - Input from Zone 0/Div. 1 - Installation in Zone 2/Div. 2 - Field open and short circuit detection - Input muxing/duplication/inversion/operations available - Modbus RTU RS-485 for monitor & configuration - Fully programmable operating parameters - Three port isolation, Input/Output/Supply - High Density, eight channels per unit Technical Specifications: - Supply: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected. Current Consumption: 84 mA @ 24 Vdc with short circuit input and output closed, typical. Power Dissipation: 2.1 W @ 24 Vdc with short circuit input and output closed, typical. - Input: NAMUR standard according to IEC 60947-5-6. Input switching current levels: ON ≥ 2.1 mA, OFF ≤ 1.2 mA. Open Fault: current ≤ 0.05 mA. Short fault: resistance ≤ 100 Ω. No Fault: current ≥ 0.35 mA and resistance ≥ 360 Ω. Input equivalent source: 8 V 1 kΩ typical (8 V no load, 8 mA short). - Output: Voltage free SPST optocoupled open-collector transistor (solid-state relay, photo-MOS). Open-collector/drain rating: 100 mA @ 35 V (≤ 1.0 V voltage drop). Leakage current: ≤ 10 µA @ 35 V. Response time: 2 ms. Frequency response: 500 Hz maximum. - Modbus interface: Modbus RTU RS-485 up to 115.2 kbps for monitor/configuration/control. - Isolation: Test Voltage: I.S. In/Out 1.5 kV; I.S. In/Supply 1.5 kV; Out/Supply 500 V. - Environmental conditions: Operating temperature: –40 to +70 °C. Storage temperature: –45 to +80 °C. - Safety description: Equipment: Associated apparatus and non-sparking electrical equipment. Safety parameters: Uo = 11.2 V, Io = 12 mA, Po = 34 mW at terminals 21-13, 21-14, 22-15, 22-16, 23-17, 23-18, 24-19, 24-20. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. - Mounting: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. Weight: about 175 g. Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). Dimensions: Width 22.5 mm, Depth 123 mm, Height 120 mm. - Channels: 8 - Status: ACTIVE
