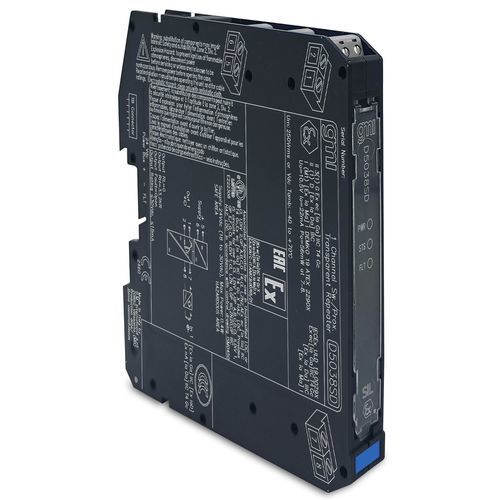

Current repeater D5038SD

ATEXuniversal

The Switch/Proximity Detector Repeater D5038 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to the output in Safe Area. The output port can assume two different impedance values (RL or RH) or it can open completely. The module output repeats the input state according to the following correspondence: low input state -> RL, high input state -> RH. Alternatively, the output can be configured to invert the input state. In both cases, the output opens if any fault (open or short circuit) occurs at the corresponding input.SIL 3 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2Field open and short circuit detectionField fault universal mirroring to PLC DILine monitoring transparencyIn-field programmability by DIP SwitchThree port isolation, Input/Output/SupplyHigh Density, two channels per unitTechnical Specifications:SupplyVoltage24 Vdc nom. (18 to 30 Vdc), reverse polarity protected.Current Consumption30 mA (D5038D), 25 mA (D5038X), 15 mA (D5038S), @ 24 Vdc, typical.Power Dissipation1.0 W (D5038D), 1.0 W (D5038X), 0.4 W (D5038S), @ 24 Vdc, typical.InputInput switching current levelsON ≥ 2.1 mA, OFF ≤ 1.2 mA.Open FaultCurrent ≤ 0.05 mA.Short faultResistance ≤ 100 Ω.No FaultCurrent ≥ 0.35 mA and resistance ≥ 360 Ω.Input equivalent source8 V 1 kΩ typical (8 V no load, 8 mA short).OutputTypeVoltage free SPST solid-state relays, with series (RL) and parallel (RH-RL) resistances, ±5% tolerance.Fault impedance> 1 MΩ.Max voltage30 Vdc.Max current15 mA.Response time500 µs.Frequency response1 kHz maximum.IsolationTest VoltageI.S. In/Out 1.5 kV; I.S. In/Supply 1.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperatureTemperature limits –40 to +70 °C.Storage temperatureTemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.WeightAbout 135 g (D5038D and D5038X), 120 g (D5038S).ConnectionBy polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Certifications: ATEX, EMC, Ex, IECEx, SIL (see documentation section for details)Status: ACTIVE
