Current repeater D5036S

ATEXDIN rail

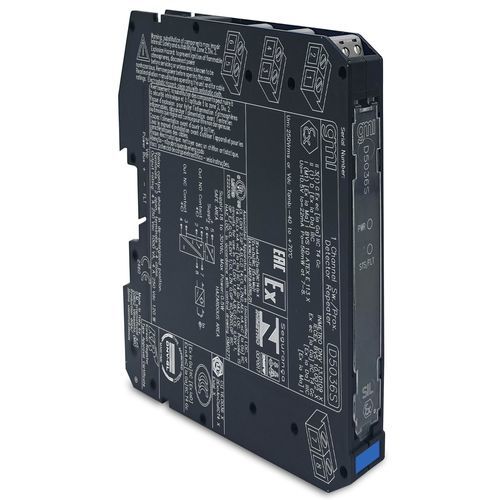

I.S. SIL2 Switch/Proximity Relay-Out RepeaterThe Switch/Proximity Detector Repeater D5036 is a module suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to a relay contact in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. If needed, the output can also be inverted.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2High voltage/current rating relay outputField open and short circuit detectionIn-field programmability by DIP SwitchThree port isolation, Input/Output/SupplyHigh Density, two channels per unitSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption18 mA (D5036S), @ 24 Vdc with short circuit input and relay energized, typical.Power Dissipation0.45 W (D5036S), @ 24 Vdc with short circuit input and relay energized, typical.InputInput switching current levelsON ≥ 2.1 mA, OFF ≤ 1.2 mA.Fault current levelsopen fault ≤ 0.2 mA, short fault ≥ 6.8 mA.Input equivalent source8 V 1 kΩ typical (8 V no load, 8 mA short).OutputTypeVoltage free SPDT (D5036S) relay contact.Contact materialAg Alloy (Cd free), gold plated.Contact rating4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W (resistive load).Contact min. switching current1 mA.DC and AC load breaking capacityrefer to Instruction Manual.Mechanical / electrical life5 * 10⁶ / 3 * 10⁴ operation, typical.Operate / release time8 / 4 ms, typical.Frequency response10 Hz maximum.IsolationTest VoltageI.S. In/Out 1.5 kV; I.S. In/Supply 1.5 kV; I.S. In/ I.S In 500 V; Out/Supply 1.5 kV; Out/Out 1.5 kV.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus.Weightabout 120 g (D5036S).Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVECertifications: ATEX, EMC, Ex, IECEx, Maritime, SIL (see documentation section for details)Documentation available: Datasheet, Instruction Manual, Certificates, Declarations of Conformity, DrawingsSeries: D5000Category: Intrinsically Safe Isolators > Digital InputManufacturer: G.M. International S.p.A.Related products: D5036DAccessories: JDFT049, OPT5096Technical Specifications:SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2High voltage/current rating relay outputField open and short circuit detectionIn-field programmability by DIP SwitchThree port isolation, Input/Output/SupplyHigh Density, two channels per unitVoltage: 24 Vdc nom (18 to 30 Vdc)Current Consumption: 18 mA (D5036S)Power Dissipation: 0.45 W (D5036S)Operating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting: DIN-Rail 35 mmWeight: about 120 g (D5036S)Dimensions: 12.5 x 123 x 120 mm
