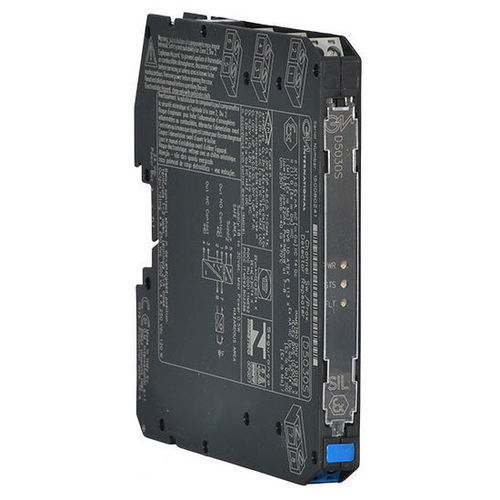

Current repeater D5030S

ATEXDIN rail

I.S. SIL3 Switch/Proximity Relay-Out RepeaterThe Switch/Proximity Detector Repeater D5030 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to a relay contact in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. In the double-channel model, the second output can be configured to repeat the second input, to duplicate the first input or to report the first input fault. If needed, the output can also be inverted.SIL 3 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 22 fully independent channelsHigh voltage/current rating relay outputField open and short circuit detectionIn-field programmability by DIP SwitchThree port isolation, Input/Output/SupplyTechnical Specifications:Supply: Voltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected. Current Consumption: 18 mA @ 24 Vdc with short circuit input and relay energized, typical. Power Dissipation: 0.45 W @ 24 Vdc with short circuit input and relay energized, typical.Input: Input switching current levels: ON ≥ 2.1 mA, OFF ≤ 1.2 mA. Fault current levels: open fault ≤ 0.2 mA, short fault ≥ 6.8 mA. Input equivalent source: 8 V 1 kΩ typical (8 V no load, 8 mA short).Output: Type: Voltage free SPDT relay contact. Contact material: Ag Alloy (Cd free), gold plated. Contact rating: 4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W (resistive load). Contact min. switching current: 1 mA. DC and AC load breaking capacity: refer to Instruction Manual. Mechanical / electrical life: 5 * 10⁶ / 3 * 10⁴ operation, typical. Operate / release time: 8 / 4 ms, typical. Frequency response: 10 Hz maximum.Isolation: Test Voltage: I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 2.5 kV; Out/Out 2.5 kV.Environmental conditions: Operating temperature: –40 to +70 °C. Storage temperature: –45 to +80 °C.Safety description: Equipment: Associated apparatus and non-sparking electrical equipment. Safety parameters: Uo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.Mounting: Type: DIN-Rail 35 mm, with or without Power Bus. Weight: about 120 g. Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm.Certifications:ATEX, IECEx, UL, FM, DNV, TUV, NEPSI, PESO, CML, SGS, CCVE, KR, and more for international compliance.
