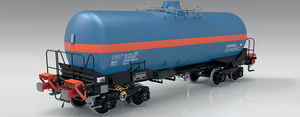

Wheeled carrier Zacens

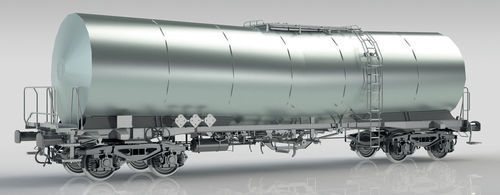

Wheeled carrier - Zacens - Greenbrier Europe - image - 2

Add to favorites

Compare this product

Characteristics

Locomotion: wheeled
Load capacity: 65.9 t
(72.6 us ton)

Description

Features

Designed for transport of liquid chemical products in accordance with tank code L4BH.
Heating system: two separate half-pipe channel circuits located under the tank.
Thermal insulation: 100 mm thickness with stainless steel outer plates.
Design and certification compliant with RID, TSI, EN and UIC standards; TEN GE marking for traffic operation.

Capabilities

Loading/filling via dome (flap cover secured with 4 screws) or DN 150 filling nozzle depending on product characteristics.
Discharge via lower-side DN 100 discharge pipe or optionally via upper-side deep pipe.
Bottom valve operated by a mechanical bilateral operating device for reliable discharge control.

Parameters

Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G1-TSI
Brake regime: S
Brake type: KE-GP (K)
Max. speed for 90.0 t: 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition class: T1
Minimum curve radius (Rmin): 35.0 m
Length over buffers: 15,040 mm
Effective volume: ~72.2 m³
Tank central slope: 1.5°
Calculation pressure: 10 bar
Max. operating pressure: 3 bar
Tare weight: ~24.1 t (Ri25)
Payload: ~65.9 t
Bogie type: Y25Lsd-KP1
Heating temperature: max. 190 °C
Material of equipment: Carbon steel

Measurements
All measurements are in millimetres.

Note
The descriptions provided herein are for general information purposes only.

Technical specifications

Commercial designation: Zacens series tank wagon
Tank code: L4BH (suitable for liquid chemical products)
Effective volume: approximately 72.2 m³
Insulation: 100 mm thermal insulation with stainless steel outer plates
Heating system: two separate half-pipe channel circuits under the tank; heating up to 190 °C
Filling arrangements: dome with flap cover (secured with 4 screws) and DN 150 filling nozzle
Discharge arrangements: lower-side discharge via DN 100 pipe; optional upper-side deep pipe
Bottom valve: operated by mechanical bilateral operating device
Design & compliance: meets RID, TSI, EN and UIC standards; TEN GE marking
Axle load: 22.5 t per axle
Track gauge: 1,435 mm (standard gauge)
Loading gauge: G1-TSI
Brake regime/type: S regime; KE-GP (K) brake type
Speeds: max. 100 km/h for 90.0 t; max. 120 km/h unloaded
Climate condition class: T1
Rmin: 35.0 m
Length over buffers: 15,040 mm
Tank central slope: 1.5°
Calculation pressure: 10 bar; Max. operating pressure: 3 bar
Tare weight: ~24.1 t (Ri25)
Payload: ~65.9 t
Bogie type: Y25Lsd-KP1
Material of equipment: Carbon steel
