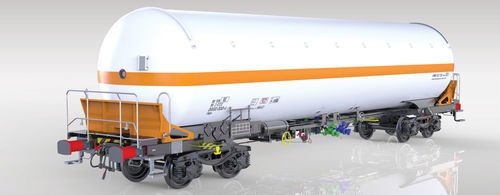

Wheeled carrier Zags

platform

Features

• Designed for transportation of anhydrous ammonia (UN1005) and liquefied hydrocarbons (LPG) under tank code P29BH.
• Constructed in compliance with RID and TSI regulations and applicable EN / UIC standards; underframe per EN 12663-2 and UIC 530-1; TEN GE marking for traffic operation.
• Optimized capacity-to-weight ratio for ammonia transport; tank head thickness per RID TE 25 b).
• Inspection access via DN 500 manway with cover (EN 12561-6).

Capabilities

• Bottom valves for loading/unloading hydraulically controlled from track level on both sides.
• T-pipes and side oblique valves DN 80 for liquid and gaseous phases; standard reduction DN 80/DN 50 on gas phase.
• Ready for sunshield assembly and tank code change to P27BH.
• Minimum filling temperature: -40 °C.
• Loading/unloading arrangements and fittings adaptable to customer requirements; options for wheelsets, axle boxes, brake blocks, buffers and draw gear.
• Optional safety equipment: anti-climbing systems, derailment detector EDT101; protective shield per RID TE 25 d), additional platform and level gauge available.
• Manhole positioned on tank head axis per intellectual property No. Ru.068711.

Parameters
Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G1-TSI
Brake regime: “S”
Brake type: KE-GP (K)
Max. speed (loaded 90.0 t): 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition: T1
R_min: 35.0 m
Length over buffers: 16,960 mm
Effective volume: ~106.0 m³
Tank central slope: Horizontal
Calculation pressure: 29 bar
Tare weight: ~34.9 t
Payload: ~55.1 t
Bogie type: Y25Lsd-KP1
*Tare weight depends on bogie type, wheelsets and additional equipment.

Technical specifications

• Model family: Zags series
• Intended cargo: Anhydrous ammonia (UN1005) and liquefied hydrocarbons (LPG) — tank code P29BH
• Effective volume: ~106.0 m³; Calculation pressure: 29 bar; Lowest filling temperature: -40 °C
• Axle load: 22.5 t / axle; Payload: ~55.1 t; Tare weight: ~34.9 t (depends on configuration)
• Max speed: 100 km/h (loaded 90 t) / 120 km/h (unloaded); Track gauge: 1,435 mm; Loading gauge: G1-TSI
• Brake regime: “S”; Brake type: KE-GP (K); Bogie type: Y25Lsd-KP1 (other options available)
• Tank fittings: DN 500 manway (EN 12561-6), T-pipes and DN 80 valves, DN 80/DN 50 reduction on gas phase, hydraulically controlled bottom valves accessible at track level
• Standards: RID and TSI regulations; EN / UIC standards; underframe per EN 12663-2 and UIC 530-1; TEN GE marking

Note
Note: The descriptions provided herein are for general information purposes only.
