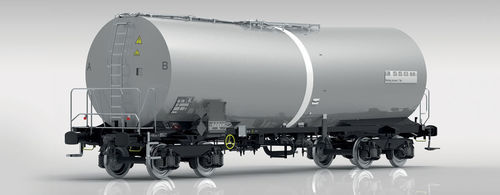

Wheeled carrier Zaens

Features

• The tank wagon is designed for the transportation of liquid chemical products compliant with the tank code L4BH.
• The heating system consists of two separate low profile channel circuits located under the tank.
• The tank is insulated with 80 mm thermal insulation covered by stainless steel plates.
• The wagon design complies with RID, TSI, EN and UIC standards and carries TEN GE marking for traffic operation.

Capabilities

• Loading/filling is performed via the dome fitted with a flap cover secured by 4 screws, adapted to the properties of the cargo.
• Discharge is via a lower side discharge pipe DN 100.
• The bottom valve is operated by a mechanical bilateral operating device.
• The wagon is equipped with a thermometer for temperature monitoring.

Parameters
Axle load — 22.5 t / axle
Track gauge — 1,435 mm
Loading gauge — G1-TSI
Brake regime — “S”
Brake type — KE-GP (K)
Max. speed for 90.0 t — 100 km/h
Max. speed (unloaded) — 120 km/h
Climate condition — T1
Rmin — 35.0 m
Length over buffers — 14,150 mm
Effective volume — ~ 73.5 m3
Tank central slope — 1.5°
Calculation pressure — 4 bar
Max. operating pressure — 3 bar
Tare weight — ~ 22.4 t (BA314)
Payload — ~ 67.6 t
Bogie type — Y25Lsd-KP1 or Y25Lsd-K
Heating temperature — max. 160° C
Material of equipment — Carbon steel

Technical specifications

• Model family: Zaens (effective volume approx. 73.5 m³)
• Intended cargo: Liquid chemical products (tank code L4BH)
• Tank insulation: 80 mm thermal insulation covered with stainless steel plates
• Heating: Two separate low-profile channel circuits under the tank; heating up to max. 160° C
• Loading: Dome with flap cover secured by 4 screws
• Discharge: Lower side discharge pipe DN 100; bottom valve with mechanical bilateral operating device
• Thermometer: Fitted
• Design/standards: Complies with RID, TSI, EN, UIC; TEN GE marking for traffic operation
• Axle load: 22.5 t/axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime/type: “S” / KE-GP (K)
• Speeds: max 100 km/h (for 90.0 t), 120 km/h (unloaded)
• Climate condition: T1
• Minimum curve Rmin: 35.0 m
• Length over buffers: 14,150 mm
• Tank central slope: 1.5°
• Calculation pressure / Max operating pressure: 4 bar / 3 bar
• Tare weight: ~ 22.4 t (BA314)
• Payload: ~ 67.6 t
• Bogie type: Y25Lsd-KP1 or Y25Lsd-K
• Material of equipment: Carbon steel
