Wheeled carrier Zacns

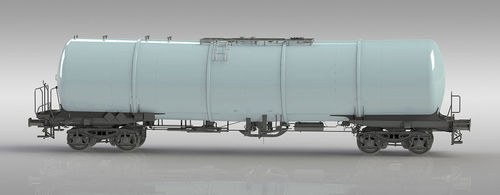

Wheeled carrier - Zacns - Greenbrier Europe
Wheeled carrier - Zacns - Greenbrier Europe
Wheeled carrier - Zacns - Greenbrier Europe - image - 2
Wheeled carrier - Zacns - Greenbrier Europe - image - 3
Wheeled carrier - Zacns - Greenbrier Europe - image - 4
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Load capacity

68.7 t
(75.7 us ton)

Description

Features
  • The 98 m³ tank wagon Zacns is designed for the transport of white mineral oil and complies with tank code L4BH; test pressure 4 bar.
  • Designed and built in accordance with RID and TSI regulations and corresponding EN / UIC standards.
  • Wagon tare weight: 21.3 t (with BA303 wheelset and standard brake) or 21.1 t (with BA303 wheelset and CFCB brake).
  • Operating temperature range: -20 °C to +50 °C.
  • Equipped with TEN GE marking for operational traffic.
  • Structure complies with EN 12663-2 and UIC 530-1 provisions for mounting an Automatic Coupler.


Capabilities
  • Loading through the dome (fitted with flap cover with 4 screws) or through the optional DN 150 filling nozzle.
  • System operated from track level on both sides; T-pipes and side oblique valves DN 100 are fitted for the liquid phase.
  • DN 50 / 2” connection provided for the gas phase.
  • Loading and unloading equipment fitted on the tank can be adapted according to customer requirements.
  • The 98 m³ tank wagon can be manufactured and delivered in four configurations: underframe with or without central kit (fixed along the tank, MODULAR solution) and brake configurations: KE-GP-A(K) with KEF-C distributor (standard) or with CFCB; both brake options provide a basis for further digitalization of freight wagons.


Advantages
  • Reduced tare weight (21.1 t or 21.3 t depending on brake configuration).
  • Reduced wagon length (16,400 mm).
  • Optimized tank capacity for transport of light-weight products.


Technical specifications
  • Axle load: 22.5 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1
  • Brake regime: "S"
  • Brake type: KE-GP-A (K)
  • Max. speed for 90.0 t: 100 km/h
  • Max. speed (unloaded): 120 km/h
  • Climate condition: T1
  • R_min: 35.0 m
  • Length over buffers: 16,400 mm
  • Distance over extreme axis: 12,660 mm
  • Effective volume: ~98.0 m3
  • Tank central slope: 1°
  • Calculation pressure: 4.0 bar
  • Max. operating pressure: 3.0 bar
  • Tare weight (table): 31.3 t
  • Also noted tare weight (features): 21.3 t (BA303 + standard brake) or 21.1 t (BA303 + CFCB)
  • Payload: 68.7 t
  • Bogie type: Y25Lsd-KP1(V) / Y25Lsdi(f)-KC1(V)
  • Material of equipment: Carbon steel
  • Working temperature range: -20 °C to +50 °C
