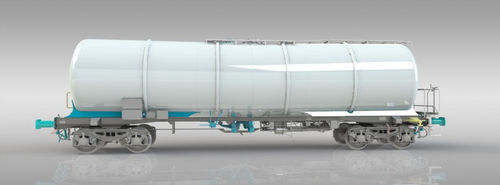

Wheeled carrier Za(c)ns

Features

• The 88 m³ tank wagon Za(c)ns is designed for transport of white mineral oil; tank code L4BH; test pressure 4 bar.
• Built to RID and TSI regulations and relevant EN / UIC standards; equipped with TEN GE marking for operation in traffic.
• Tare weight approximately 20.9 t (ULT25 wheelset with standard brake) or 20.7 t (ULT25 with CFCB brake).
• Working temperature range −20 °C to +50 °C; structure compliant with EN 12663-2 and UIC 530-1 for automatic coupler mounting.

Capabilities

• Loading through the dome (flap cover with four screws) or optional DN 150 filling nozzle.
• Track-level operation on both sides with T-pipes and side oblique valves DN 100 for the liquid phase.
• DN 50 / 2 in connection provided for the gas phase.
• Loading and unloading equipment can be adapted to customer requirements.
• The wagon can be manufactured and delivered in multiple configurations:
• Underframe: with or without central kit fixed along the tank (MODULAR solution).
• Brake options: KE-GP-A(K) or MH-GP-A(K) in standard configuration, or CFCB as an option; all provide a basis for further digitalization of freight wagons.

Advantages

• Reduced tare weight (≈ 20.9 t or 20.7 t depending on brake configuration).
• Shorter wagon length (15,000 mm) facilitating yard handling.
• Optimized tank capacity for transport of light-weight products.

Parameters
Axle load: 22.5 t/axle
Track gauge: 1,435 mm
Loading gauge: G1-TSI
Brake regime: S
Brake type: MH-GP-A(K), KE-GP-A(K)
Max. speed at 90.0 t: 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition: T1, T3
Rmin: 35.0 m
Length over buffers: 15,000 mm
Effective volume: ~ 88.0 m³
Tank central slope: 10°
Calculation pressure / Test pressure: 4 bar / 4 bar
Max. operating pressure: 3 bar
Tare weight: ~ 20.9 t (depending on configuration)
Payload: ~ 69.1 t
Bogie type: Y25Lsd-KP1, Y25Lsdi(f)-KCI(V)
Material of equipment: Carbon steel

Technical specifications

• Model: Za(c)ns
• Effective (tank) volume: ~ 88.0 m³
• Axle load: 22.5 t/axle
• Track gauge: 1,435 mm
• Length over buffers: 15,000 mm
• Tare weight: ~ 20.9 t (depending on brake configuration)
• Payload: ~ 69.1 t
• Calculation pressure / Test pressure: 4 bar
• Max. operating pressure: 3 bar
• Working temperature range: -20 °C to +50 °C
• Brake types available: MH-GP-A(K), KE-GP-A(K), CFCB option
• Bogie types: Y25Lsd-KP1, Y25Lsdi(f)-KCI(V)
• Tank central slope: 10°
• Minimum curve radius (Rmin): 35.0 m
• Material of equipment: Carbon steel
