Wheeled carrier Zacens

Wheeled carrier - Zacens - Greenbrier Europe
Wheeled carrier - Zacens - Greenbrier Europe
Wheeled carrier - Zacens - Greenbrier Europe - image - 2
Wheeled carrier - Zacens - Greenbrier Europe - image - 3
Wheeled carrier - Zacens - Greenbrier Europe - image - 4
Wheeled carrier - Zacens - Greenbrier Europe - image - 5
Wheeled carrier - Zacens - Greenbrier Europe - image - 6
Wheeled carrier - Zacens - Greenbrier Europe - image - 7
Wheeled carrier - Zacens - Greenbrier Europe - image - 8
Wheeled carrier - Zacens - Greenbrier Europe - image - 9
Wheeled carrier - Zacens - Greenbrier Europe - image - 10
Wheeled carrier - Zacens - Greenbrier Europe - image - 11
Wheeled carrier - Zacens - Greenbrier Europe - image - 12
Wheeled carrier - Zacens - Greenbrier Europe - image - 13
Wheeled carrier - Zacens - Greenbrier Europe - image - 14
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Load capacity

66 t
(72.8 us ton)

Description

Overview

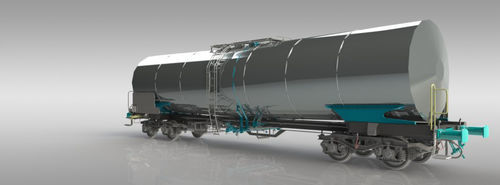

  • Tank wagon designed for transport of liquid chemical products classified under tank code L4BH.
  • Constructed to comply with RID, TSI, EN and UIC standards; equipped with TEN GE marking for rail traffic operation.


Features
  • Heating system with two independent half-pipe circuits located beneath the tank.
  • Thermal insulation: 100 mm thickness covered by galvanized steel plates.


Capabilities
  • Loading/filling via manhole dome (flap cover secured with 4 screws) or DN 150 filling nozzle according to product characteristics.
  • Discharge options: lower-side discharge through DN 100 pipe or optional top discharge via deep pipe.
  • Bottom valve operated by a mechanical bilateral operating device for controlled unloading.


Notes
  • Information provided for general reference; final configuration may vary per order and applicable regulations.


Technical specifications
  • Axle load: 22.5 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1-TSI
  • Brake regime: S
  • Brake type: KE-GP (K), MH-GP-(K)
  • Max. speed at 90.0 t: 100 km/h
  • Max. speed (unloaded): 120 km/h
  • Climate condition: T1
  • Minimum curve radius R_min: 35.0 m
  • Length over buffers: 15,860 mm
  • Effective volume: ~ 78.5 m³
  • Tank central slope: 1°
  • Calculation pressure: 10 bar
  • Max. operating pressure: 3 bar
  • Tare weight: ~ 24.0 t
  • Payload: ~ 66.0 t
  • Bogie type: Y25Lsd-KP1
  • Heating temperature: max. 190° C
  • Material of equipment: Carbon steel
