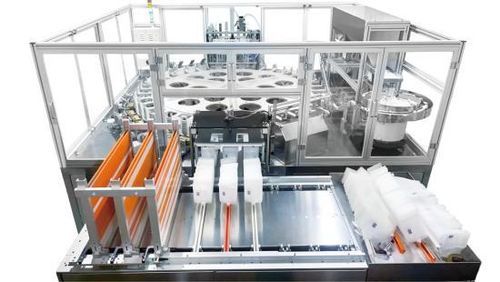

Rotary sealing machine GF-3000Z

fully-automaticfoodliquids

Product introduction
The automatic three-station rotary spout sealing machine is designed for automated insertion and heat sealing of straws and spouted bags. Suitable for various straw diameters and spouted stand-up pouch sizes, it is used in beverage packaging, drinkable jelly, condiments and homecare products. The machine can be customized to integrate with filling lines.

Brand / Item No.

• Brand: GBPI
• Item NO.: GF-3000Z

Technical Parameters
Item: Technical Specifications
Overall Dimensions: 3900 mm × 2900 mm × 2000 mm (L × W × H)
Sealing Tube Type: Stand-up pouches, three-side sealed bags, gusseted bags, special-shaped bags (customizable)
Product Specifications: Bag size: 80–180 mm (L), 70–120 mm (W); sealing length: 60–120 mm
Straw size: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc.
Working Speed: 120 pcs/min (depends on material and bag size)
Positioning Accuracy: ≤ ±0.5 mm
Heat Sealing Tools: 6 sets total (1 preheating, 4 heat sealing, 1 cooling)
Temperature Control Module: 2 sets (12-channel modules) accuracy ±0.1°C
Temperature Range: Ambient to 300°C
Power Supply: 380V/50Hz, 15 kW
Air Supply: 0.6–0.8 MPa, 15 L/min
Equipment Weight: 3000 kg

Product features

• Fully automatic straw feeding, bag feeding, heat sealing and discharge; multi-machine linkage reduces labor (2–4 operators for linked lines, 1 operator for single unit).
• Rotary three-station structure for compact footprint and stable operation.
• LCD touch screen for easy parameter setting, precise control and continuous operation.
• Imported temperature control modules and SMC/Festo/Airtac pneumatic components with Omron PLC for reliable performance.
• Automatic fault detection with alarm, stop, diagnosis and fault position display.
• Capable of 120–135 pcs/min depending on material and pouch size.
• Three-station bag feeding increases throughput; bag size adjustable (max 180 mm × 120 mm) or customizable.
• Stepwise heating and cooling sealing system; interchangeable sealing knives to accommodate different straw/spout types.

System Composition

• Includes straw feeding, bag feeding, heat sealing, product collecting, central control system and machine base.
• Straw feeding system: hopper, vibratory bowl, guide rail and photoelectric sensor for automatic straw feeding control.
• Bag feeding system: pneumatic suction cups for reliable bag delivery.
• Heat sealing system: large turntable with 6 knife sets (1 preheat, 4 seal, 1 cool); adjustable station frame and customizable knives for different sizes.
• Product collecting system: finished product and reject platforms; photoelectric and pneumatic control for automatic edge alignment.
• Control panel: touch screen for parameter input and real-time status (count, time).

Application areas

• Laundry detergent stand-up pouches
• Seasoning/condiment stand-up pouches
• Beverage pouches
• Folded water pouches

Technical specifications

• Brand: GBPI
• Model / Item NO.: GF-3000Z
• Overall Dimensions: 3900 mm × 2900 mm × 2000 mm
• Bag size: 80–180 mm (L) × 70–120 mm (W); sealing length 60–120 mm
• Straw sizes: 8.5 mm, 10 mm, 14 mm, 16 mm
• Working speed: 120 pcs/min (dependent on material and size)
• Positioning accuracy: ≤ ±0.5 mm
• Heat sealing tools: 6 sets (1 preheat, 4 sealing, 1 cooling)
• Temperature control: 12-channel modules (2 sets) accuracy ±0.1°C
• Temperature range: Ambient to 300°C
• Power supply: 380V/50Hz, 15 kW
• Air supply: 0.6–0.8 MPa, 15 L/min
• Equipment weight: 3000 kg
