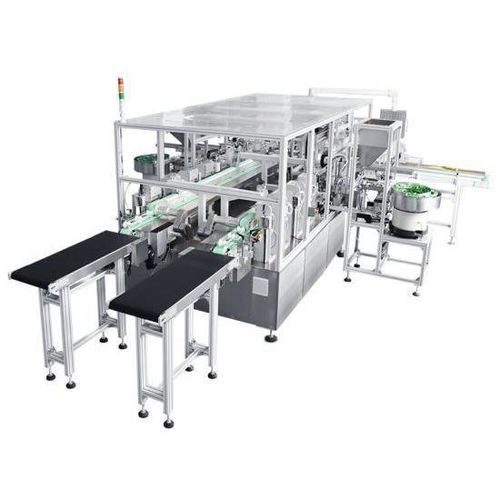

Spout pouch sealing machine GF2600-X

linearfully-automaticfor the food and beverage industry

Product Overview
The GBPI GF-2600X spout sealing machine is designed for automatic fitting and heat-sealing of spouts on various pouch types, including slanted (penguin) bags, stand-up pouches and 3-side seal pouches. It handles multiple straw/spout diameters and lengths and is suitable for beverage, food, pharmaceutical and daily-chemical production lines. The machine features a compact footprint, stable operation and food-grade aluminum/stainless-steel components compliant with GMP requirements.

Brand and Identification
Brand: GBPI
Item NO.: GF-2600X

Technical Parameters (table)
Overall Dimensions: 5800 mm × 4100 mm × 1800 mm (L × W × H)
Packaging Types: Stand-up Pouches, 3-Side Seal Pouches, Gusseted Bags, Special-Shaped Bags
Material Compatibility: Pouch inner layer PE or PP; Spouts/Straws: PE, PP
Pouch Size Range: Length 150–350 mm; Width 130–250 mm
Sealing Length: 60–120 mm
Straw/Spout Diameters Supported: 8.5 mm, 10 mm, 14 mm, 16 mm, etc.
Operating Speed: 80–90 cycles/minute
Positioning Accuracy: ≤0.5 mm
Sealing Tools: 12 groups (8 heat-sealing, 2 preheating, 2 cooling)
Temperature Control: 4 modules (16 channels), accuracy ±0.1°C
Heating Temperature Range: 0–300°C
Power Supply: 380V/50Hz, 11KW
Air Supply: 0.6–0.8 MPa, 2000 L/H
Equipment Weight: 3500 kg

Product features

• Dual-channel linear design enabling parallel processing of pouches and spouts for high throughput.
• Fully automatic sequence: bag separation, corner cutting, spout feeding/installation and heat sealing.
• PLC control with intelligent parameter presets for rapid changeover between bag and spout types.
• Advanced temperature control modules and premium pneumatic components (SMC, Festo, AirTAC) for consistent performance.
• Staged heating and final cooling to ensure reliable seal quality.
• Automatic fault detection with alarm, stop, diagnosis and fault-location display.
• Main structural and contact parts in aluminum alloy and stainless steel to meet food and drug hygiene standards.

System composition

• Dual-channel configuration including: bag feeding system, spout feeding system, cutting unit, heat-sealing unit, bag collecting system, central control and base frame.
• Bag feeding: bag dividing, conveying and positioning mechanisms to ensure single-bag handling and accurate placement.
• Spout feeding: vibratory bowl, linear feeder and rotating delivery mechanisms with automatic detection and start/stop control.
• Heat-sealing system: integrated heating and cooling units; 4 heat-sealing blade sets and 1 cooling blade set; blade specifications customizable for different spout types.
• Independent temperature control for each sealing blade set to facilitate setup and debugging.
• Bag collecting: constant-speed conveyor with automatic arranging; reserved mounting position for coding/printing equipment.
• Operation interface displays real-time status (output count, date, servo and cylinder parameters, sealing time, etc.).

Technical specifications

• Overall Dimensions: 5800 mm × 4100 mm × 1800 mm (L × W × H)
• Packaging Types: Stand-up Pouches; 3-Side Seal Pouches; Gusseted Bags; Special-Shaped Bags
• Material Compatibility: Pouch inner layer PE or PP; Spouts PE or PP
• Pouch Size Range: Length 150–350 mm; Width 130–250 mm
• Sealing Length: 60–120 mm
• Supported Spout Diameters: 8.5 mm, 10 mm, 14 mm, 16 mm, etc.
• Operating Speed: 80–90 cycles/min
• Positioning Accuracy: ≤0.5 mm
• Sealing Tools Configuration: 12 groups (8 heat-sealing, 2 preheating, 2 cooling)
• Temperature Control: 4 modules (16 channels), accuracy ±0.1°C
• Heating Temperature Range: 0–300°C
• Power Supply: 380V/50Hz, 11KW
• Air Supply Requirement: 0.6–0.8 MPa, 2000 L/H
• Equipment Weight: 3500 kg
