Rotary placing and sealing machine GF-2200Z

fully-automaticpackaging machinefor insert

Product Overview

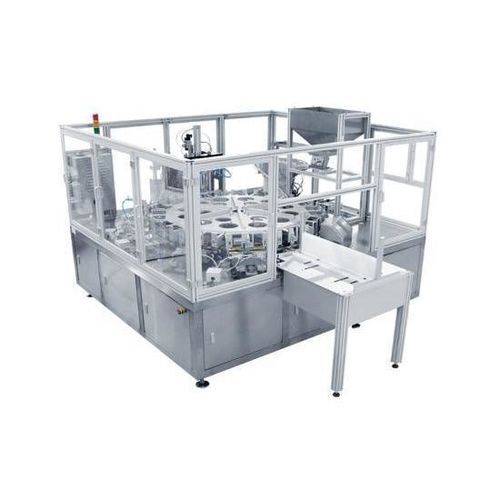

The GF-2200Z is an automatic spout insert and sealing machine. Spouts are fed via hopper, vibrating tray and chutes to the spout bracket, rotate on the turntable to the pouch station, where pouches are picked up, positioned on the spout fixture and conveyed together to the heat-sealing station. Front and rear sealing knives perform heat sealing; finished pouches are pushed to the finished goods area and rejected waste is removed automatically at the waste port.

Key Product Data

• Brand: GBPI
• Model: GF-2200Z
• Payment: 100% TT In Advance
• Product Origin: Guangzhou, China
• Shipping Port: Huangpu
• Lead Time: 20–30 days

Technical Specifications
Overall Dimensions: 2400 x 2200 x 2000 mm (L x W x H)
Packaging Types: Stand-up pouches, 3-side seal pouches, gusseted bags, special-shaped bags
Material Types: Pouches inner layer PE/PP; Tubes PE/PP
Bag Size Range: Length 80–190 mm; Width 70–120 mm
Sealing Length: 60–120 mm
Straw/Spout Sizes: 8.5 mm, 10 mm, 14 mm, 16 mm, etc.
Working Speed: 80–90 pcs/min
Positioning Accuracy: ≤0.5 mm
Sealing Tools: 6 groups (1 preheating, 4 heat-sealing, 1 cooling)
Temperature Control Modules: 18 groups, accuracy ±0.1°C
Heating Temperature Range: 0–300°C
Power Supply: 380V/50Hz, 11KW
Air Supply: 0.6–0.8 MPa, 2000 L/H
Equipment Weight: 2100 Kg

Application Field

• Jelly spout bags
• Soy milk spout bags
• Toiletries spout bags
• Puree bags
• Special-shaped nozzle bags
• Folding outdoor hydration bags

Advanced System

• Spout delivery composed of chutes, vibrating disk and guide rails with photoelectric sensors for feed control.
• Bag delivery uses pneumatic suction; delivery and sealing stations operate in dual positions to increase throughput.
• Heat-sealing system with large turntable, sealing blades and adjustable stations; six sealing blade groups (1 preheat, 4 seal, 1 cooling).
• Workstations adjustable for different bag sizes; interchangeable sealing blades for various spout types.
• Each sealing blade has an independent temperature controller for separate run/debug.
• Finished-product and waste collection tables with photoelectric and pneumatic controls for automatic handling.
• Touch-screen control panel for parameter setting and real-time status (counts, time, success/failure rates).
• Auxiliary parts include temperature controllers, pressure gauges and emergency stop buttons; modular base for transport and assembly.

Product Features

• Fully automatic operation; single operator required for periodic loading of spouts and pouches.
• Round turntable layout minimizes footprint.
• Key components in aluminum and stainless steel to meet hygienic requirements for food, pharmaceutical and related industries.
• Stable continuous operation with precise control for long production runs.
• Imported temperature modules, SMC pneumatic parts and Omron PLC for reliable performance.
• Automatic fault detection with alarm, auto-stop and fault-location display.

Machine Production / Working Samples
The GF-2200Z is an integrated system composed of the heat-sealing module, spout feeding module, pouch feeding module, pouch output module and central control mounted on a single base frame. All subsystems use sensors and relays for coordinated operation to ensure efficient, repeatable packaging production.

Specifications

• Brand: GBPI
• Model: GF-2200Z
• Overall Dimensions: 2400 x 2200 x 2000 mm
• Packaging Types: Stand-up pouches, 3-side seal pouches, gusseted bags, special-shaped bags
• Material Types: Pouches inner layer PE/PP; Tubes PE/PP
• Bag Size Range: Length 80–190 mm; Width 70–120 mm
• Sealing Length: 60–120 mm
• Straw/Spout Sizes: 8.5 mm, 10 mm, 14 mm, 16 mm
• Working Speed: 80–90 pcs/min
• Positioning Accuracy: ≤0.5 mm
• Temperature Control: 18 groups, accuracy ±0.1°C
• Power Supply: 380V/50Hz, 11KW
• Air Supply: 0.6–0.8 MPa, 2000 L/H
• Equipment Weight: 2100 Kg
• Lead Time: 20–30 days
