Linear sealing machine GF-2700XB

fully-automaticfor the packaging industrywith feeder

Automatic Spout Inserting and Sealing Machine / Pouch Spout Inserting and Sealing Machine

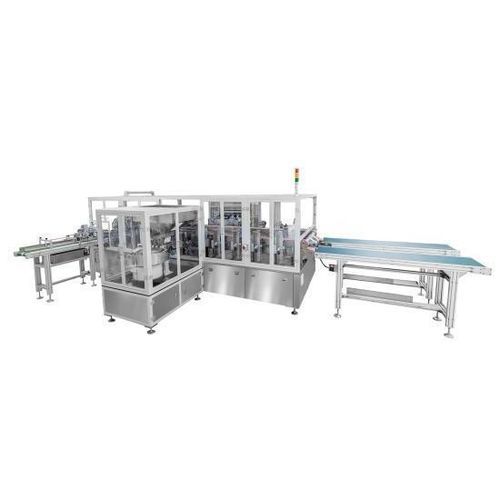

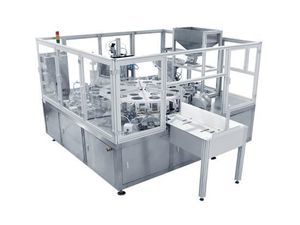

Dual-channel Linear Mode Corner-spout Sealing Machine GF-2700XB

Product introduction
Fully automatic dual-channel linear type corner-spout sealing machine is professionally used for automatic casing and heat sealing of spouts and pouches. It is suitable for spouts of various diameters, lengths and models. As preferred automation equipment for corner spout packaging pouches, it is widely use in packaging of Laundry detergent, beverage, oil, edible oil, outdoor folding water pouches, etc. It can be customized to connect to the filling production line.

Working principle
The conveyor belt transports the pouch to the pouch picking position. The pouch picking mechanism grabs the pouch and transports it to the pouch positioning platform for positioning. The pouch placing mechanism grabs the positioned pouch and transports it to the conveyor belt position. After the belt pressing mechanism presses the pouch, the conveyor belt transports the pouch to the cutting knife position for corner cutting, and then transports it to the opening position for opening and spout installation (after rotating 90 degrees, the cylinder pushes the nozzle forward), and then transports it to the sealing knife position for heat sealing, and finally cools it.

Specification
Items Technical Parameters
Device Dimensions
5800 mm x 4100 mm x 1800 mm
(Length x Width x Height)
Packaging Type
Stand-up pouches, 3-side seal pouches, gusset pouches,
Irregularly shaped pouches (customized)
Material Type Pouch: Inner layer PE, inner layer PP
Spout: PE, PP
Product Specifications
Pouch length: 150~350 mm (length), 130~250 mm (width), sealing length: 60~120 mm
Spout size: 8.5 mm (regular), 10 mm, 14 mm, 16 mm, etc. Working speed
80~90 pieces/minute, single channel 40~45 pieces/minute
(depending on different materials and bag sizes)
Corner-spout sealing
angle
45°±5°(Other angles can be customized)
Position accuracy ≤±0.5 mm
Packaging cutting tool
There are 6 groups in total, including 1 preheating group, 4 heat
sealing groups, and 1 cooling group
Heating temperature 3 groups (8-channel modules), accuracy ±0.1°C
Power supply 0~300℃
Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China Tel: 020-8615 3789, 8615 3790 Web: www.gbpitester.com
Air source 380V/50Hz13KW
Equipment weight 0.6~0.8MPa22L/min
Working speed 3500 kg

Product features
 The equipment adopts dual-channel mode, and the processes such as pouchging, corner cutting, tube loading and heat sealing are fully automatic;
 PLC control and intelligent parameter setting are adopted, and parameters can be quickly set
according to different pouch types and straws, and the operation is simple;
 Imported temperature control modules and pneumatic components such as SMC, Festo, and
AirTac are adopted, with reliable quality;
 The packaging step design of step-by-step heating and final cooling is adopted, and the
packaging effect is excellent;
 Automatic fault detection, automatic alarm, automatic stop, automatic diagnosis and display of
fault location;
 The equipment is light in weight, small in footprint and stable in performance;
 All main components are made of aluminum alloy and stainless steel, which meet the
environmental hygiene requirements of food and drug GMP.
