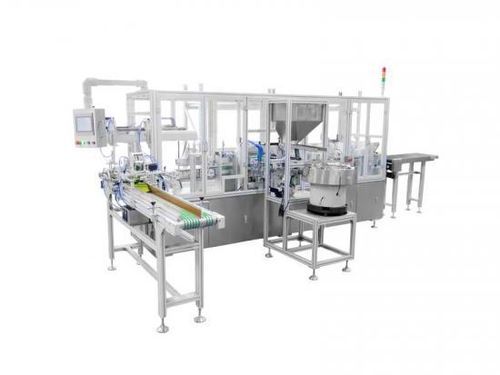

Linear sealing machine GF-1700XB

fully-automaticfor insertfor spout pouches

Product Introduction
This machine is designed for automatic tube insertion and heat-sealing of corner-spout and other spout-type bags. It handles a range of straw diameters and bag formats, and can be customized for inline connection with filling production lines.

Product Details
Brand: GBPI
Item NO.: GF-1700XB
Payment: 100% TT In Advance
Product Origin: Guangzhou China
Shipping Port: Huangpu
Lead Time: 20-30 day

Technical Parameters
Overall Dimensions: 5800mm×2100mm×1800mm (Length×Width×Height)
Sealing Type: Stand-up bags, three-side sealed bags, gusseted bags, special-shaped bags
Material Types: Bags: Inner layer PE, inner layer PP; Straws: PE, PP
Product Specifications: Bag length: 150–350 mm; Bag width: 130–250 mm; Sealing length: 60–120 mm (customizable); Straw size: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc.
Working Speed: 40–45 pieces per minute (depending on material and bag size)
Bevel Sealing Angle: 45° ±5° (other angles customizable)
Position Accuracy: ≤ ±0.5 mm
Sealing Tools: 6 sets (1 preheating, 4 heat-sealing, 1 cooling)
Heating Temperature: 0–300 °C
Power Supply: 380V/50Hz, 9KW
Air Supply: 0.6–0.8MPa, 12L/min
Equipment Weight: 2200 kg

Application Field

• Jelly spout bag
• Soy milk spout bag
• Toiletries spout bag
• Puree bag
• Special-shaped nozzle bag
• Folding outdoor hydration/water bag

Product Features

• Single-channel linear mode with fully automatic processes: bag separation, corner cutting, tube loading, and heat-sealing.
• PLC control and intelligent parameter settings for rapid changeover between bag types and straw specifications.
• Imported temperature control modules and pneumatic components (SMC, Festo, AirTAC) for stable operation.
• Stepwise heating with final cooling to ensure consistent, high-quality seals.
• Automatic fault detection with alarm, stop and diagnostic display for fast troubleshooting.
• Compact, space-efficient design with stable performance.
• Main structural components in aluminum alloy and stainless steel, meeting food/drug GMP hygiene requirements.

System Composition

• Bag Feeding System: separation, positioning and handling mechanisms.
• Tube Feeding System: vibration plate, linear vibratory feed and rotating tube-loading mechanism with automatic detection and start/stop control.
• Heat-Sealing System: 1 preheating knife group, 4 heat-sealing knife groups, 1 cooling knife group (customizable for straw specs).
• Bag Collection System: uniform conveying, automatic bag alignment and reserved space for date-coding equipment.
• Control System: real-time display of status including finished product count, date, servo and cylinder parameters, and sealing time.

Technical Specifications

• Overall Dimensions: 5800mm × 2100mm × 1800mm (L×W×H)
• Sealing Type: Stand-up, three-side sealed, gusseted, special-shaped bags
• Materials: Bags (Inner PE / Inner PP), Straws (PE / PP)
• Bag Size Range: Length 150–350 mm; Width 130–250 mm; Sealing length 60–120 mm (customizable)
• Straw Sizes: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc.
• Working Speed: 40–45 pcs/min (dependent on material and bag size)
• Bevel Sealing Angle: 45° ±5°
• Position Accuracy: ≤ ±0.5 mm
• Sealing Tools: 6 sets (1 preheating, 4 heat-sealing, 1 cooling)
• Heating Temperature Range: 0–300 °C
• Power Supply: 380V/50Hz, 9KW
• Air Supply Requirement: 0.6–0.8 MPa, 12 L/min
• Equipment Weight: 2200 kg
