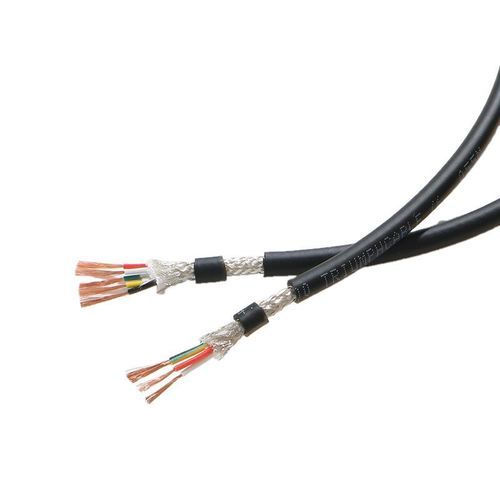

Control electrical cable assembly TRVVP

signalmulti-conductormulti-strand

Application scope
Control signal cables for connecting robot control systems (including arc welding robots, spot welding robots, assembly robots, painting robots, material handling robots, underwater exploration robots, engraving robots, palletising robots and other robot types). Suitable for installations with severe repeated bending, moving drag‑chain applications and environments with electromagnetic interference from motors and equipment.

Product features

• Flexible, abrasion‑resistant outer surface with cut resistance
• Flame retardant per IEC 60332‑1‑2; oil resistant per EN 60811‑404
• Maximum travel speed: ≤ 3 m/s
• Bending radius: travel < 10 m → 4×D; travel ≥ 10 m → 7.5×D (D = cable outer diameter)
• Designed for cable‑chain operation: service life > 20 million chain cycles

Product structure

• Conductor: ultra‑fine, multi‑strand bare copper (with tensile core), IEC 60228 compliant
• Insulation: Category 6 TPE core insulation
• Outer sheath: PUR, grey (RAL 7001)
• Stranding: < 8 cores — bundled stranding; ≥ 8 cores — grouped stranding around reinforcement core

Technical specifications
Conductor marking: black conductors with white numerical marking in accordance with DIN VDE 0293
Conductor resistance: complies with IEC 60228 Class 6
Protective earth conductor: G = includes yellow‑green protective earth conductor; X = without yellow‑green protective earth conductor

Parameter table
Specification (mm²) | Cable outer diameter (mm) | Conductor outer diameter (mm) | Conductor resistance at 20°C (Max, Ω/km) | Insulation thickness (mm) | Sheath thickness (mm) | Rated voltage (V)
3*0.2 | 5.4±0.2 | 1.3 | 92.3 | 0.4 | 1.0 | 300/300V
3*0.3 | 5.6±0.2 | 1.5 | 69.2 | 0.5 | 1.0 | 300/300V
3*0.5 | 6.5±0.2 | 1.8 | 39 | 0.5 | 1.0 | 300/300V
3*0.75 | 7.5±0.2 | 2.1 | 26 | 0.6 | 1.1 | 300/300V
3*1.0 | 8.1±0.2 | 2.4 | 19.5 | 0.6 | 1.1 | 300/300V
3*1.5 | 9.1±0.2 | 2.8 | 13.3 | 0.7 | 1.2 | 300/300V
3*2.5 | 10.9±0.2 | 3.4 | 7.98 | 0.8 | 1.3 | 300/300V

Characteristics / technical specifications

• Conductor material: ultra‑fine multi‑strand bare copper (IEC 60228)
• Insulation material: Category 6 TPE
• Sheath material: PUR (grey RAL 7001)
• Rated voltage: 300/300 V
• Bending radius guidance: 4×D for travel <10 m; 7.5×D for travel ≥10 m
• Maximum travel speed: ≤ 3 m/s
• Flame resistance: IEC 60332‑1‑2; Oil resistance: EN 60811‑404
• Designed specifically for cable‑chain/drag‑chain applications with high bend cycles (service life >20 million cycles)
