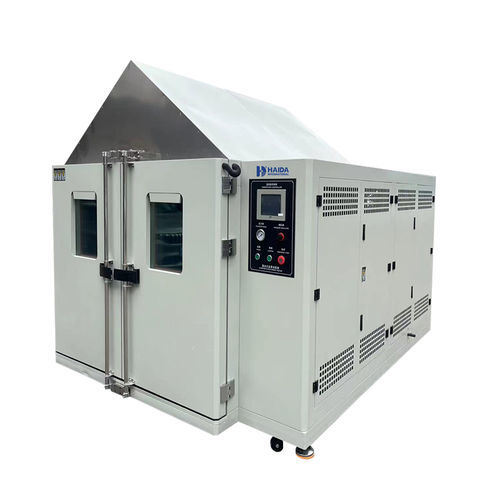

Thermostatic test chamber HD-E808-4C

climatichumiditytemperature

Product overview
Photovoltaic Module Cyclic Salt Spray Chamber HD-E808-4C is an environmental test chamber designed to assess corrosion resistance and accelerate aging of photovoltaic (PV) modules under cyclic marine conditions (salt spray, drying, high temperature/high humidity). It reproduces cyclic corrosion mechanisms to evaluate long-term reliability.

Test standards

• IEC 61701:2020 (according IEC 60068-2-52:2027)
• ASTM G85
• ASTM B117

Application and sample capacity
Suitable for testing PV modules up to 2400×1200 mm; chamber holds two 2400×1200 mm modules simultaneously. Lab volume: 4540 L (excluding sloping roof capacity).

Technical specifications

• Model: HD-E808-4C
• Internal size (L×W×H): 1200×2800×1350 mm
• External size (L×W×H): 1850×4120×2289 mm
• Lab volume: 4540 L
• Saturated tank temperature: ambient ~60℃
• Chamber temperature: ambient ~60℃ (no humidity control below +25℃)
• Temperature fluctuation: ±2℃; uniformity: ±0.5℃
• Humidity control range: 30%–98% RH (temperature-dependent); fluctuation ±3% RH
• Salt spray solution: 5% NaCl; spray rate: 1.0–2.0 ml/hr per 80 cm²; pH 6.5–7.2 (ambient)
• Spray modes: continuous and periodic
• Supported test types: NSS, ASS, CASS

Safety, utilities and installation

• Multiple protections: over-pressure, over-temperature, overload fuse protection
• Air source: 2.5 HP air pump, ≥60 L capacity (to be provided by buyer)
• Power supply: three-phase 380V±10%, 50/60Hz

Manufacturer & inspection

• Custom manufacturing available; equipment supplied through an established supplier network with 35 years of experience
• Quality control: on-site QC and AQL inspection during production and prior to shipment
• Commercial terms: pricing and lead time provided on request
