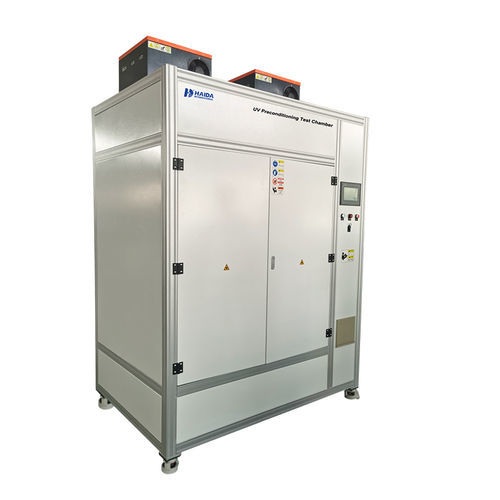

Thermostatic test chamber 8085-HD

lightUV light agingfor solar panels

Product overview
UV preconditioning test chamber for accelerated UV exposure of photovoltaic modules and material samples. Designed to perform UV irradiance preconditioning according to certification and research workflows prior to thermal cycle and humidity-freeze tests.

Test standards
IEC 61215-2:2021 MQT 10 UV Preconditioning Test

Technical specifications

• Model: 8085-HD
• Effective irradiation area: 900 x 900 mm (supports nine 300 x 300 mm samples)
• External dimensions (L x W x H): approx. 1620 x 1120 x 2000 mm
• Irradiance non-uniformity: within ±15%
• Measurement uncertainty: within ±15%
• Spectral / irradiance ratio: 280–400 nm; 3–10% in the 280–320 nm range
• Internal chamber material: fully reflective silver-coated aluminum plate
• External frame: aluminum profile frame
• Cooling method: air cooling
• Control system: PLC with touch screen interface
• Power supply: AC 380V / 50 Hz, approx. 5 kW

Software functions

• Real-time monitoring of UV intensity and component temperatures
• Automatic data collection and storage with Excel export capability
• Monitoring display: temperature parameters, UV intensity, accumulated UV dose, running time, operation mode
• Specific readouts: ambient temperature; component A temperature; component B temperature; accumulated UV dose (A/B and total)

Key commercial & quality points

• Supplier network for custom manufacturing, ensuring consistent delivery and after-sales support
• Competitive pricing based on market knowledge and sourcing
• In-house QC team performs inspections during production and pre-shipment AQL checks
• Industrial design suited to professional test laboratories
