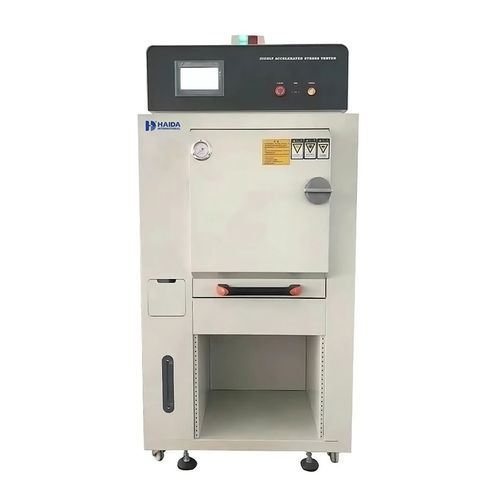

Thermostatic test chamber 8083-HD

climatichumidityhigh-pressure

Product Description
HAST high-pressure accelerated aging test chamber 8083-HD is designed for accelerated sealing and airtightness evaluation during product development. It is suitable for national defense, aerospace, automotive components, electronic parts, PCBs and lighting products to quickly reveal sealing defects and assess resistance to steam and pressurized environments.

Product Specifications
Model: 8083-HD
Internal dimension: Diameter 400 × L 500 mm (circular chamber)
External dimension: Approx. 1150 × 980 × 1850 mm (W × D × H)
Internal material: SUS 316, thickness 3 mm
External material: Stainless steel plate
Insulation: Rock wool and rigid polyurethane foam
Steam chamber heating tube: Titanium tube heating
Controller: PLC control
Temperature range: +105°C to 147°C (vapor temperature)
Temperature stability: ±2°C
Humidity range: 75%–100% RH (vapor)
Humidity stability: ±3% RH; distribution average ±5% RH
Operating pressure: 1.2–2.89 kg (including 1 atm)
Time setting range: 0–999 hours
Pressurization: 0.00 kg → 1.04 kg/cm² in approx. 45 min
Power supply: Single phase 220V 50/60Hz

Product Advantages

• Established supply chain: Components sourced from long-term professional suppliers with over 35 years of cooperation.
• Competitive pricing: Market knowledge enables cost-effective configurations for industrial procurement.
• QC process: Dedicated quality control team inspects production and pre-shipment items according to AQL standards.
• Industrial finish: Designed for a professional appearance where required.

Product Characteristics

• Circular stainless steel interior (SUS 316, 3 mm) combined with a robust external stainless steel plate.
• Titanium heating tube in the steam chamber to resist corrosion and maintain performance.
• PLC controller for precise process control and repeatable test cycles.
• Accurate temperature and vapor humidity control suitable for accelerated aging and seal-performance testing.

Technical specifications

• Model: 8083-HD
• Internal dimension: Diameter 400 × L 500 mm
• External dimension: Approx. 1150 × 980 × 1850 mm (W × D × H)
• Internal material: SUS 316 (3 mm)
• Insulation: Rock wool + rigid polyurethane foam
• Temperature range: +105°C to 147°C (vapor)
• Temperature fluctuation: ±2°C
• Humidity range: 75%–100% RH (vapor)
• Humidity stability: ±3% RH; distribution average ±5% RH
• Operating pressure: 1.2–2.89 kg (including 1 atm)
• Time setting: 0–999 hours
• Pressurization: 0.00 kg → 1.04 kg/cm² in approx. 45 min
• Power supply: Single phase 220V 50/60Hz
• Safety: Imported high-temperature sealed solenoid valve (dual circuit), overpressure and over-temperature protection, one-key/manual pressure relief, counter-pressure door locking
