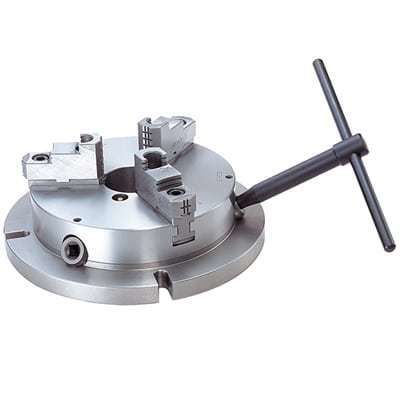

Manual tightening turning chuck

3-jawsteelslim

Overview Versatile low-profile chuck designed to replace standard collets or 3-jaw chucks. Compared with conventional jaw chucks, precision-engineered Hardinge® FlexC Collet Systems let you increase spindle RPM without concern for centrifugal forces, enabling faster setup, quicker changeover, higher accuracy and a wide gripping range for varying stock.

Why invest Scroll chucks deliver dead-true precision and guarantee .0005" repeatability on duplicate parts. This accuracy is enabled by a built-in .020" clearance between the chuck body cavity and the mounting plate hub, which provides opposing screws sufficient movement to adjust the workpiece precisely. Adjustment takes less than one minute and no further tuning is required to maintain .0005" TIR on duplicate parts.

Features & Benefits

• Precision ground — tolerances within 0.05 mm
• Soft top jaws compatible for versatile clamping
• Repeatability of 0.02 mm with standard hard jaws
• Parallel gripping accuracy with hard jaws controllable within 0.05 mm after aligning chuck sides

Advantages

• Wrench insertion at a 30° angle allows flexible placement of the chuck
• Super-thin, low-profile design increases available machining distance
• Flange mount simplifies loading and unloading operations
• Compatible with hard or soft top jaws

Technical specifications

• Repeatability: 0.02 mm (standard hard jaws)
• Tolerances: precision ground within 0.05 mm
• Repeatability on duplicate parts: .0005" TIR (≈ 0.0127 mm)
• Built-in clearance between chuck body cavity and mounting plate hub: .020"
• Wrench engagement: 30° angle
• Design: super-thin / low-profile to increase allowable machining distance
• Jaws: compatible with hard or soft top jaws
• Flange mount for simplified loading/unloading
• Adjustment time to achieve specified precision: less than one minute
