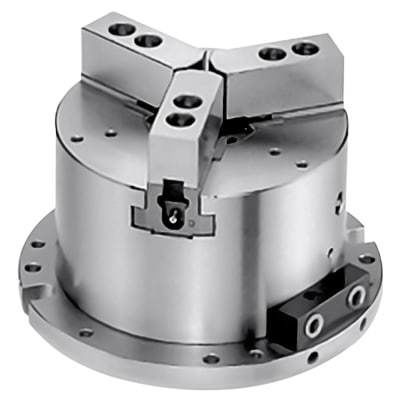

Power chuck MO

3-jawstationaryself-contained

Overview
Self-contained wedge type. Scroll chucks offer dead true precision and guarantee .0005” repeatability on duplicate parts. This precision is achieved by a built-in .020” clearance between the chuck body cavity and the mounting plate hub, which allows opposing screws ample movement to adjust the work accurately. Adjustment takes less than a minute and no further adjustment is needed to achieve precision within .0005” TIR on duplicate parts.

Features & Benefits

• Flange bottom allows chuck to be easily fixed on a plate for quick changeovers
• Built-in cylinder provides better stability and reduced space requirement for higher machining efficiency

Advantages

• Chuck can be controlled by M-code for use in an auto loading system
• Master jaws with 1.5 mm x 60° pitch enable hard and soft jaw interchangeability with CNC lathe chucks, reducing spare jaw costs
• Dust-proof and water-resistant structure increases chuck life and efficiency

Specifications / Technical data

• Model series: MO series (stationary, closed center)
• Type: Self-contained wedge type power chuck
• Repeatability (TIR): 0.0005” on duplicate parts
• Built-in clearance: 0.020” between chuck body cavity and mounting plate hub
• Adjustment time: Less than 1 minute to achieve specified repeatability
• Mounting: Flange bottom for quick plate fixation and changeovers
• Integrated cylinder: Improves stability and reduces occupied space
• Control: M-code controllable for automation/auto-loading systems
• Jaws: Master jaws with 1.5 mm x 60° pitch for hard/soft jaw interchangeability
• Construction: Dust-proof and water-resistant design
