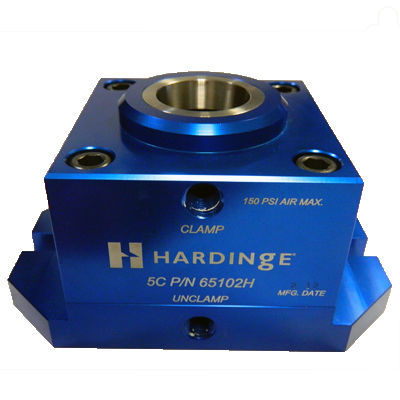

Pneumatic collet chuck 65102H

pull-backflange-mounted

Description
This low-pressure pneumatic 5C collet block, model 65102H, features a pull-back design and flange-style mounting for direct attachment to T-slots. The body is machined from solid aircraft aluminum. The draw tube amplifies applied line pressure by 7.5× to generate clamping force. Standard thru-hole design allows part passage. Collet wrench included; collets sold separately.

Features

• Pull-back design
• Double-acting cylinders — pressure-to-open and pressure-to-close
• Pneumatic actuation
• Accepts standard 5C collets
• Flange-style model mounts directly to T-slots

Technical specifications

• Model: 65102H
• Material: solid aircraft aluminum
• Draw tube force: 7.5× line pressure
• Maximum working pressure: 150 PSI
• Design: Thru-hole (standard)
• Collet wrench included; collets sold separately
• Actuation: Pneumatic, double-acting cylinders (pressure-to-open & pressure-to-close)
