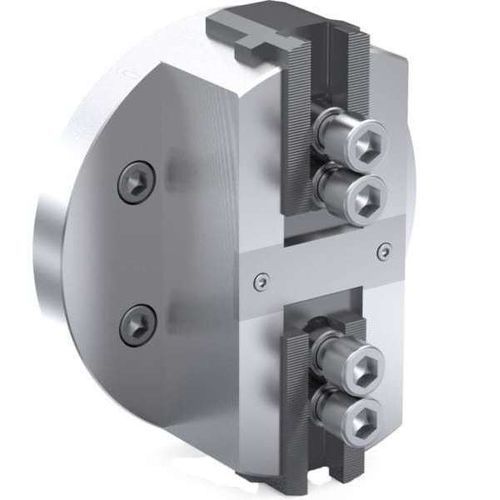

Steel workpiece clamping chuck BLN

quick-changehigh-accuracy2-jaw

Product Overview
The BLN 2-Jaw is a high-precision universal 2-jaw wedge-hook power chuck designed for machining irregular-shaped components and ball-shaped parts that require full-envelope gripping. It accepts workpiece-specific top jaws and can grip over projections when machining fittings or similar parts. The chuck provides a long jaw stroke necessary for enveloping spherical parts. Jaw slides and all moving internal components are made from hardened high-alloy steel for extended service life. Base jaws are fine-serrated to allow simple adjustment or changeover of top jaws and include lubrication ports. The chuck body is recessed to reduce weight. Two-jaw versions without rapid traverse are available for internal and external chucking.

Advantages

• No thru-hole prevents swarf ingress into the chuck.
• Recessed chuck body reduces overall weight.
• Hardened high-alloy steel jaw slides and internal components ensure long service life.
• Fine-serrated base jaws allow quick adjustment or changeover of top jaws.
• Long jaw stroke enables gripping over projections and full-envelope holding of spherical parts.

Technical Features

• Primarily designed for machining irregular-shaped components using workpiece-specific top jaws; long jaw stroke allows gripping over projections and full enveloping of ball-shaped parts.
• Jaw slides and all moving internal parts are manufactured from hardened high-alloy steel for extended durability; top jaws mount on serrations for easy adjustment or change; base jaws include lubrication ports and the chuck body is recessed to reduce weight.

Applications

• Machining irregular-shaped components such as valves and fittings, and ball-shaped parts requiring full-envelope gripping.

Characteristics / Technical Specifications

• Model type: BLN 2-Jaw wedge-hook power chuck.
• Primary material (moving parts): Hardened high-alloy steel (jaw slides and internal components).
• Base jaws: Fine-serrated with lubrication ports for easy top jaw adjustment/changeover.
• Chuck body: Recessed design to reduce weight; no thru-hole to prevent swarf ingress.
• Jaw stroke: Long stroke enabling gripping over projections and full-envelope of spherical parts.
• Jaws: Top jaws typically machined to match specific workpiece geometry.
• Use case: External and internal chucking; option available without rapid traverse.
