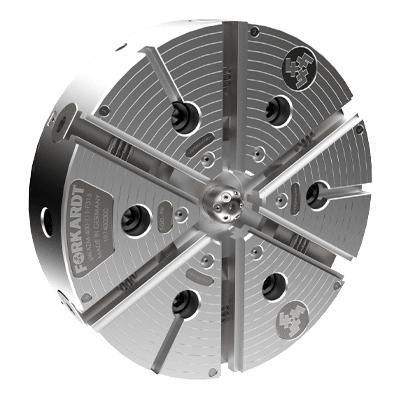

Precision engineering workpiece clamping chuck 6 WAZMF

for turning applicationsfor internal turningfor external turning

Overview
Power-operated 6-jaw lever equalizing chuck model 6 WAZMF designed to clamp thin-walled and delicate cylindrical parts with minimal distortion. Adjacent jaws are linked to provide equalizing action; the FNC quick-change jaw system reduces setup time for small to medium production runs.

Advantages

• No thru-hole prevents swarf from entering the chuck.
• Hardened high-alloy steel jaw slides and internal components for extended service life.
• Fine serrated base jaws permit simple adjustment and fast changeover.
• Long jaw stroke for gripping over projections and full envelopes of spherical parts.

Technical Features

• 12 points of equalized force.
• Single-screw FNC quick-change jaw system.
• Lever actuation increases chuck sensitivity.
• Capable of internal and external chucking.
• Differential chucking capability for varied diameters.

Applications

• Thin-walled parts
• Parts with roundness requirements
• Parts with flatness requirements
• High-speed turning
• Brake drums
• Rotors
• Impellers
• Covers and housings

Technical specifications

• Product type: Power-operated 6-jaw lever equalizing chuck
• Equalizing points: 12
• Jaw change system: Single-screw FNC quick-change jaws
• Actuation: Lever actuation for increased sensitivity
• Chucking modes: Internal, external and differential chucking
• Materials: Hardened high-alloy steel jaw slides and internal components
• Design notes: No thru-hole; fine serrated base jaws; long jaw stroke for complex envelopes
